Chapter 8
Assembling the Remaining Cisco TelePresence Elements
Parts List
Step 8
Attach the Speaker board brackets and Leveling feet to the Speaker boards.
The Speaker board brackets should angle towards the rear of the Display structure.

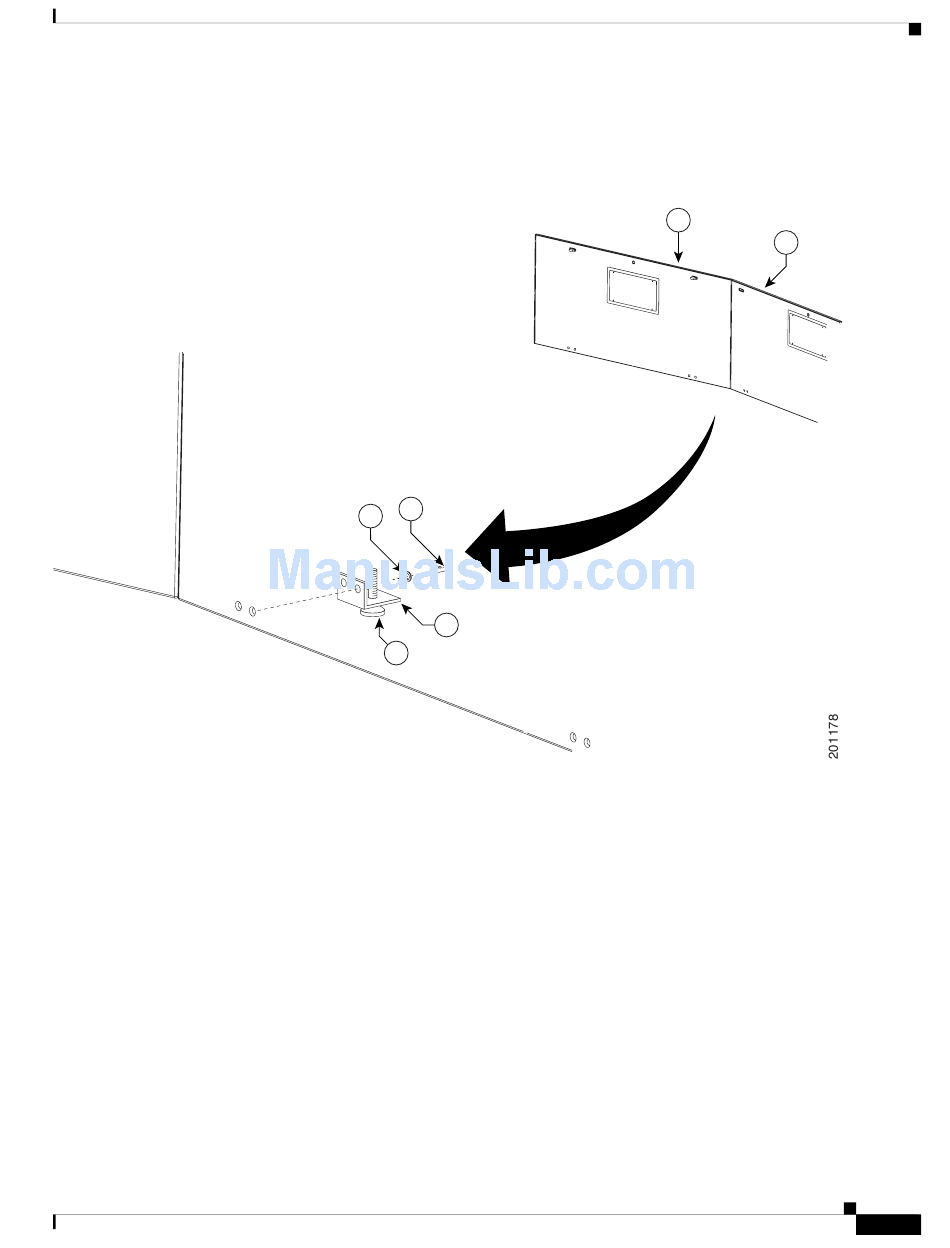

Figure 8-8
Speaker Assembly
3
2
8
9
7
5
Cisco TelePresence System 3200
8-11
OL-14521-01
