Step 14 Attach and route the power-over-Ethernet and HD Video cables for the camera.

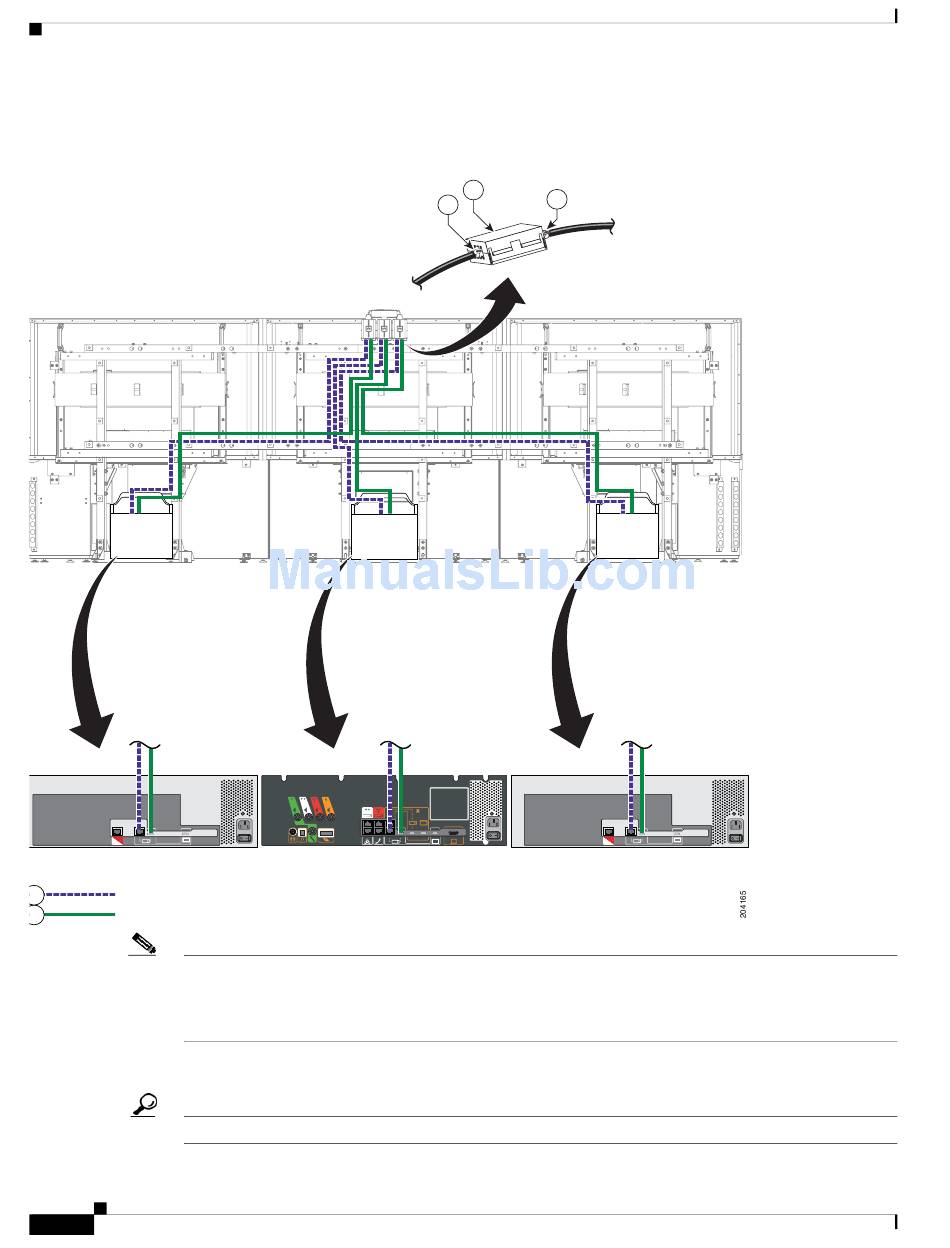

Figure 9-14 Cabling the Camera Assembly
5 RJ45 Power over Ethernet
10
HDMI connector
The camera cluster can experience radio frequency interference issues if the camera Ethernet and
Note
HD Video cables are routed, bundled, or tied together. Cisco recommends that you route the Ethernet
and HD Video cables separately and use cable ties to tie them to opposite sides of the frame. In addition,
attach the ferrite core and use tie wraps to secure them as shown in
Figure 9-14
Before you plug cables into a codec, label each cable.
Tip
Cisco TelePresence System 3200
9-16
15
displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
Chapter 9
14
15
Routing Power and Signal Cables
Figure 9-14.
OL-14521-01
