Chapter 4
Building the Lighting Assembly
Parts List
Step 14
Attach the left and right plastic diffuser panels. Before fully tightening the screws, adjust the panels to
the left or right to ensure that the spacing between the diffuser panels are even.

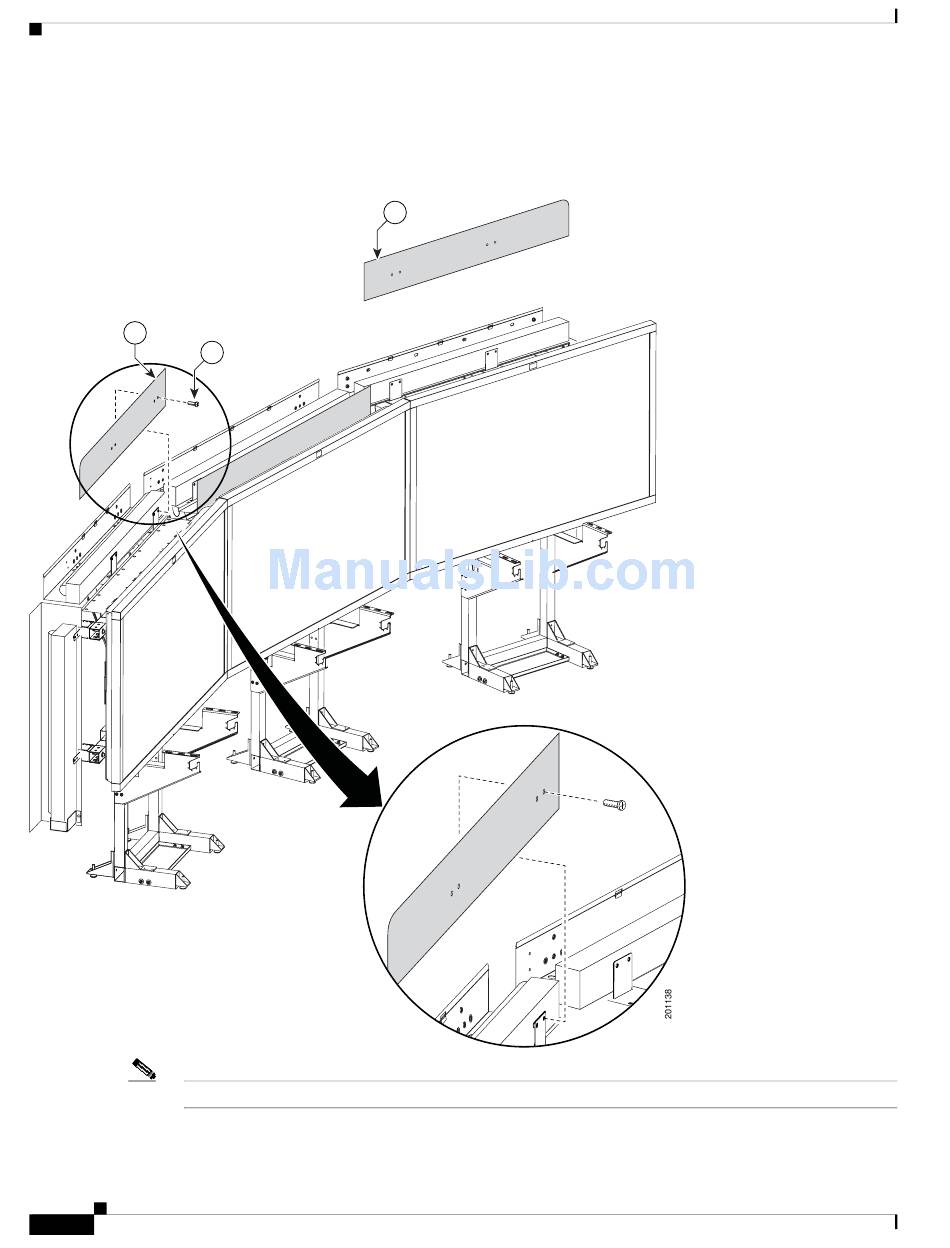

Figure 4-14
Left and Right Plastic Diffuser panels
7
6
31
Note
The rounded corners of the left and right plastic diffuser panels point outward.
Cisco TelePresence System 3200
4-16
OL-14521-01
