Chapter 9
Routing Power and Signal Cables
Parts List
Step 11
Attach and route the cables for the speakers.

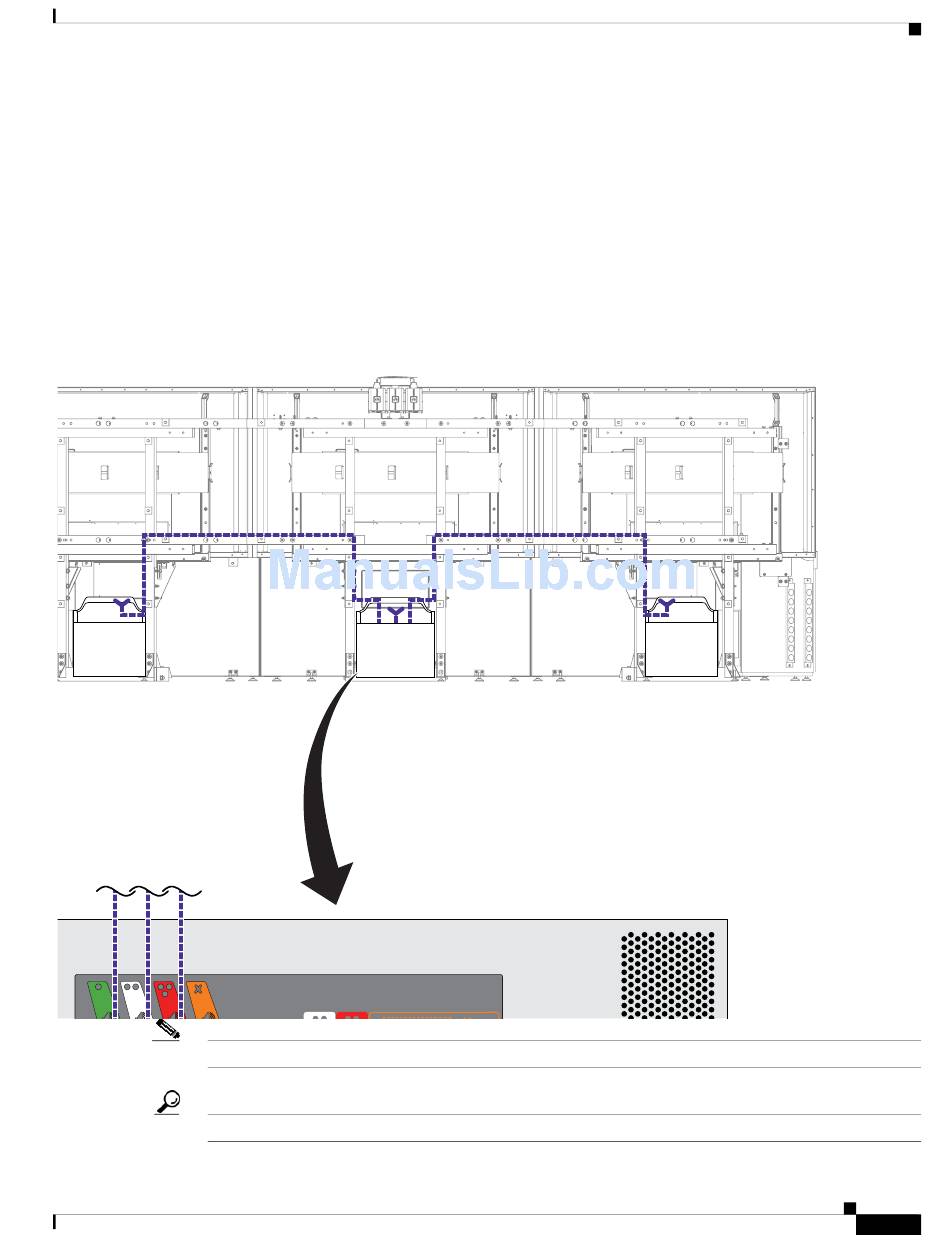

Figure 9-11
Cabling the Speakers
Figure 9-11
displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
Note
Before plugging cables into the Codec, label each one. For example, Left Speaker, Center Speaker.
Tip
Cisco TelePresence System 3200
9-13
OL-14521-01
