Step 12 Connect the following cables:
•
•
•
•

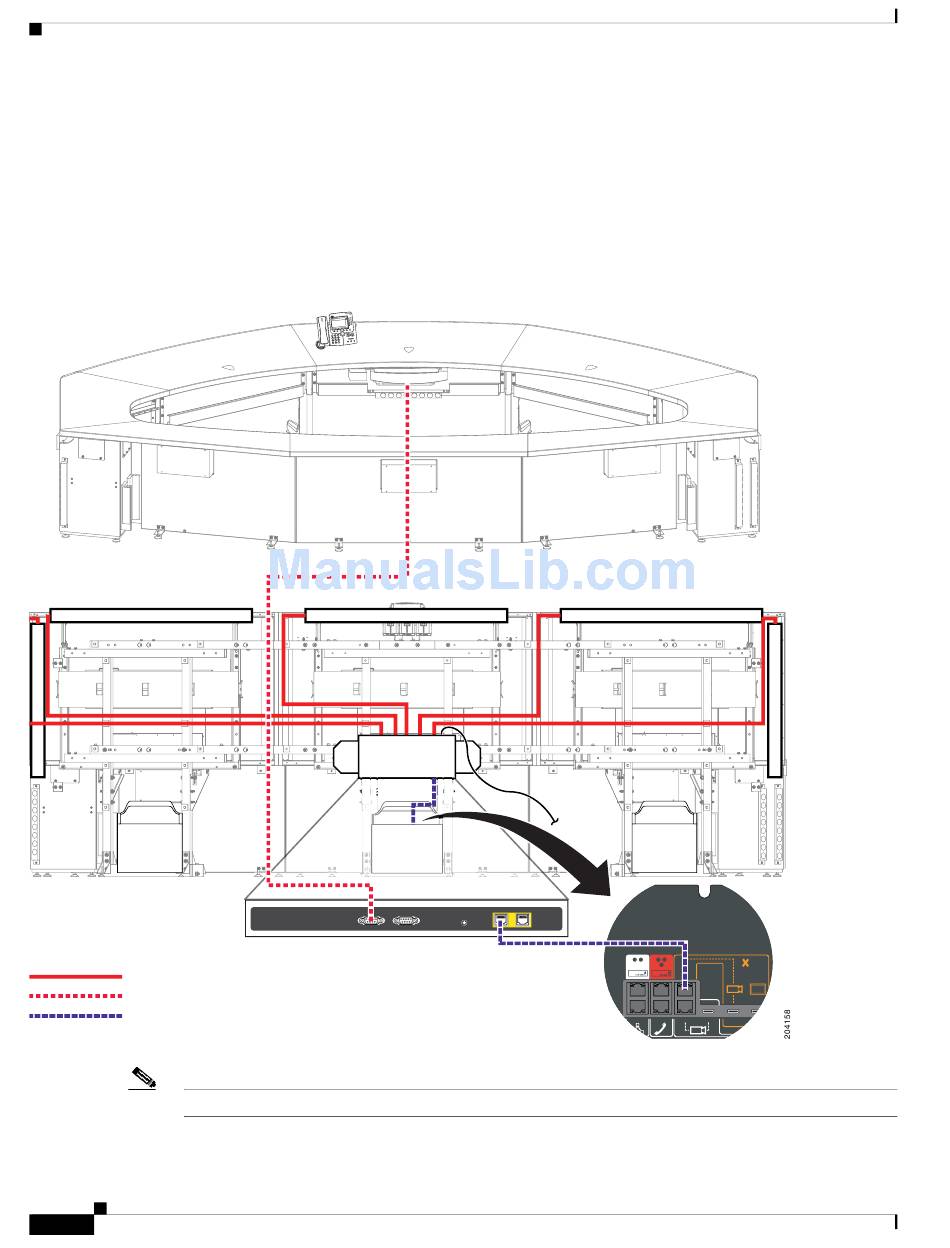

Figure 9-12 Cabling the Lighting Assembly Power Cables and Auxiliary Control Unit-to-Projector Serial Cable
Power
Projector
RJ45 Ethernet
Figure 9-12
Note
Cisco TelePresence System 3200
9-14
Attach and route the power cables for the lighting assembly by connecting the lights to the auxiliary
control unit.
Connect the serial cable between the projector and the auxiliary control unit.
Connect the Ethernet cables between the codec and the auxiliary control unit.
Connect the power cord for the auxiliary control unit to a wall outlet.
Auxiliary Control Unit Auxiliary Control Unit Auxiliary Control Unit
1
SERI AL PORTS
displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
1 2
2
RESET 10/ 100 NETW ORK PORTS
