Chapter 3 Mounting and Leveling the Plasma Displays
Purpose of Leveling the Plasma displays
Step 5 The surface of the Display shelves should not obstruct any lines of resolution. Use the Plasma display
Leveling feet to raise or lower the Plasma displays and make sure all lines of resolution can be seen when
sitting at both the first and second conference tables.

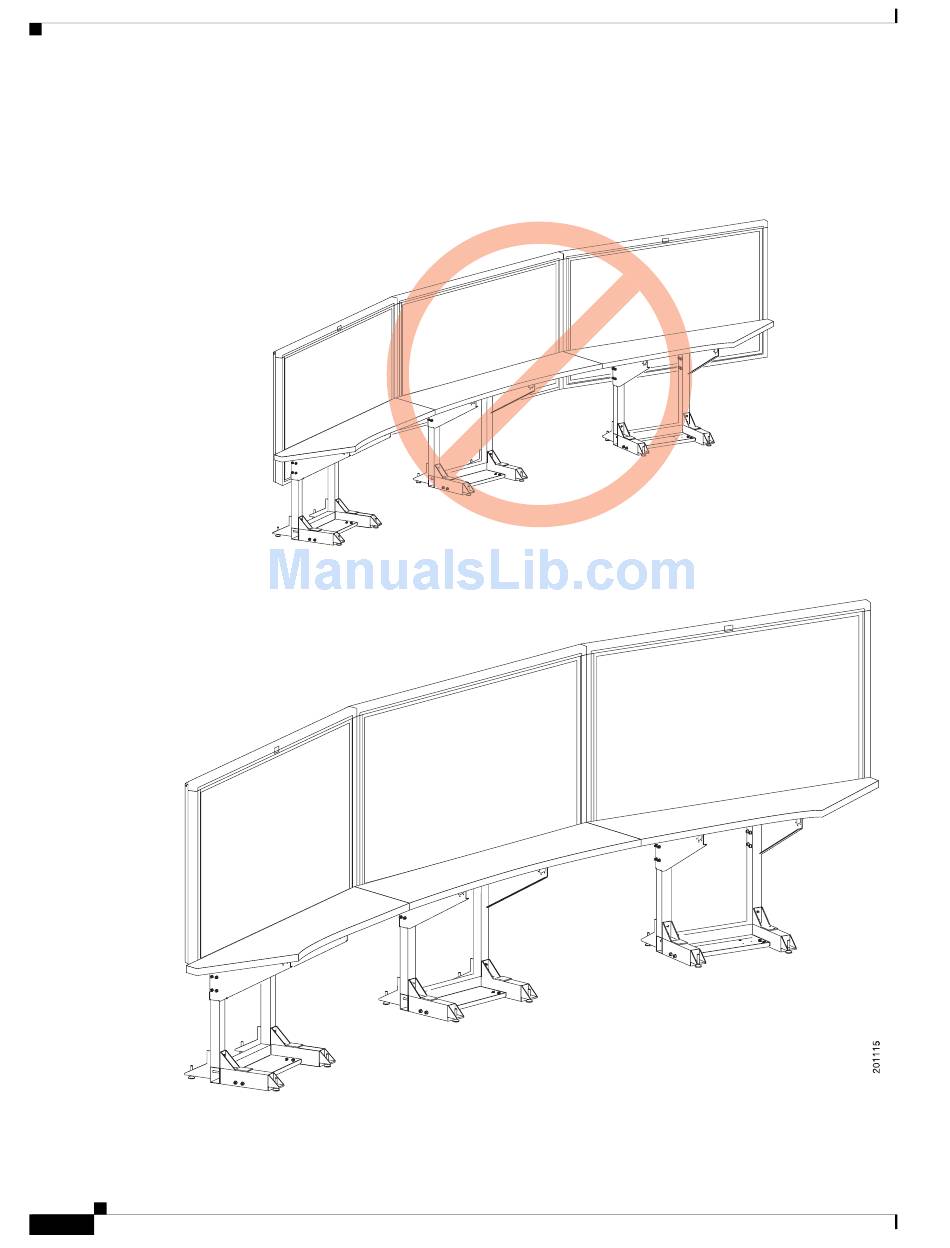

Figure 3-5 Make sure no lines of resolution are blocked by the Display shelves
