Chapter 9
Routing Power and Signal Cables
Tip
Before plugging the Light fixture power cables into the unit, label each one. For example, 5' Left light,
4' Right light.
Attach and route the power and signal cables for the plasma displays.
Step 13

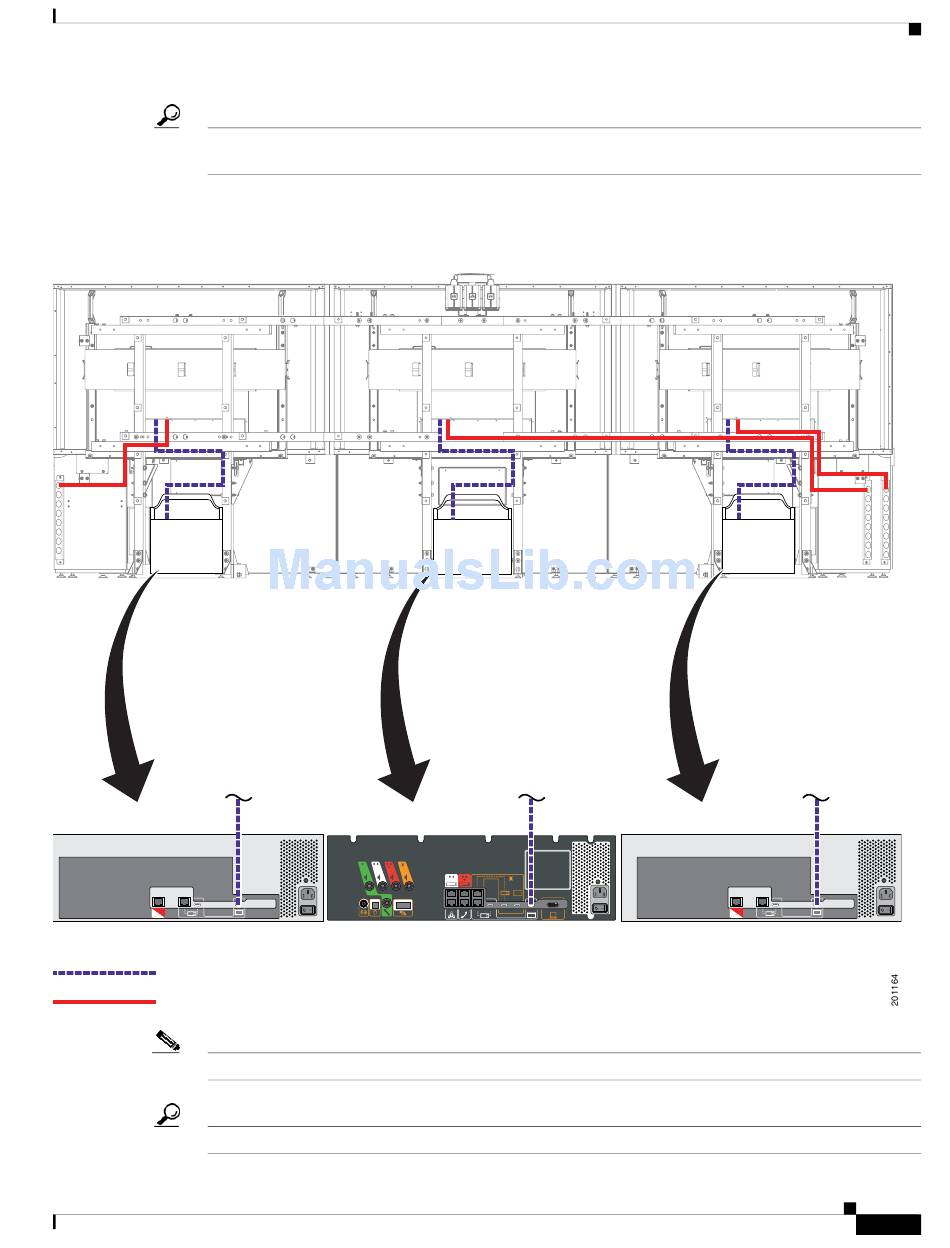

Figure 9-13
Cabling the Plasma Display
Signal
Power
Figure 9-13
Note
Before you plug cables into a Codec or PDU, label each cable.
Tip
OL-14521-01
displays the rear view of the Cisco TelePresence System 3200. Left and right are reversed.
Cisco TelePresence System 3200
Parts List
9-15
