Chapter 8
Assembling the Remaining Cisco TelePresence Elements
Parts List
Step 14

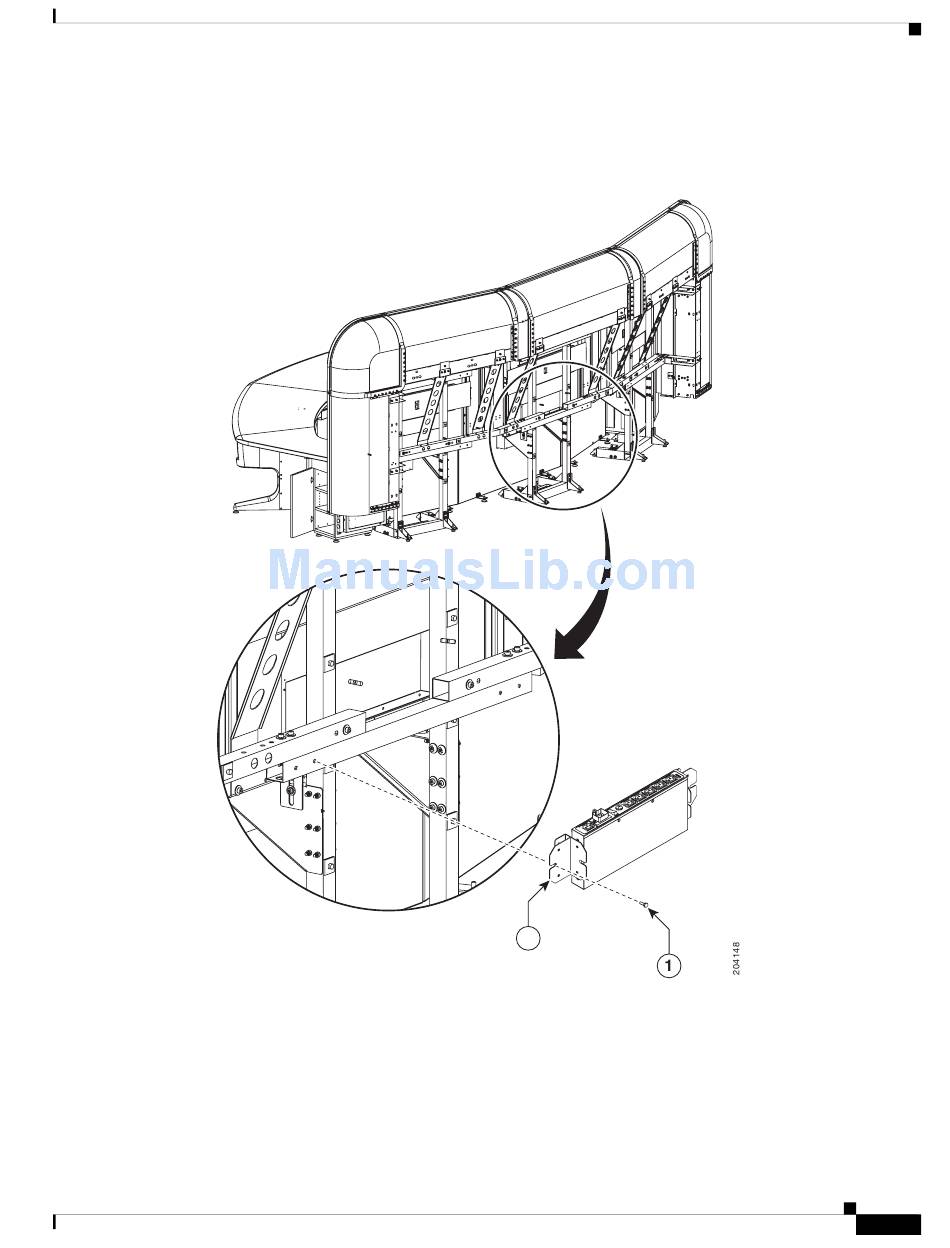

Attach the auxiliary control unit to its bracket using 5 mm screws; then, attach the unit and bracket to
the rear of the display assembly.
Figure 8-14
Auxiliary Control Unit
35
Cisco TelePresence System 3200
8-17
OL-14521-01
