Step 3 Attach the projector to the projector mounting bracket, and attach the assembly to the underside of the
center Table segment.
a.
a.
If you have clearance issues, remove the center privacy panel segment before you mount the projector.
Tip

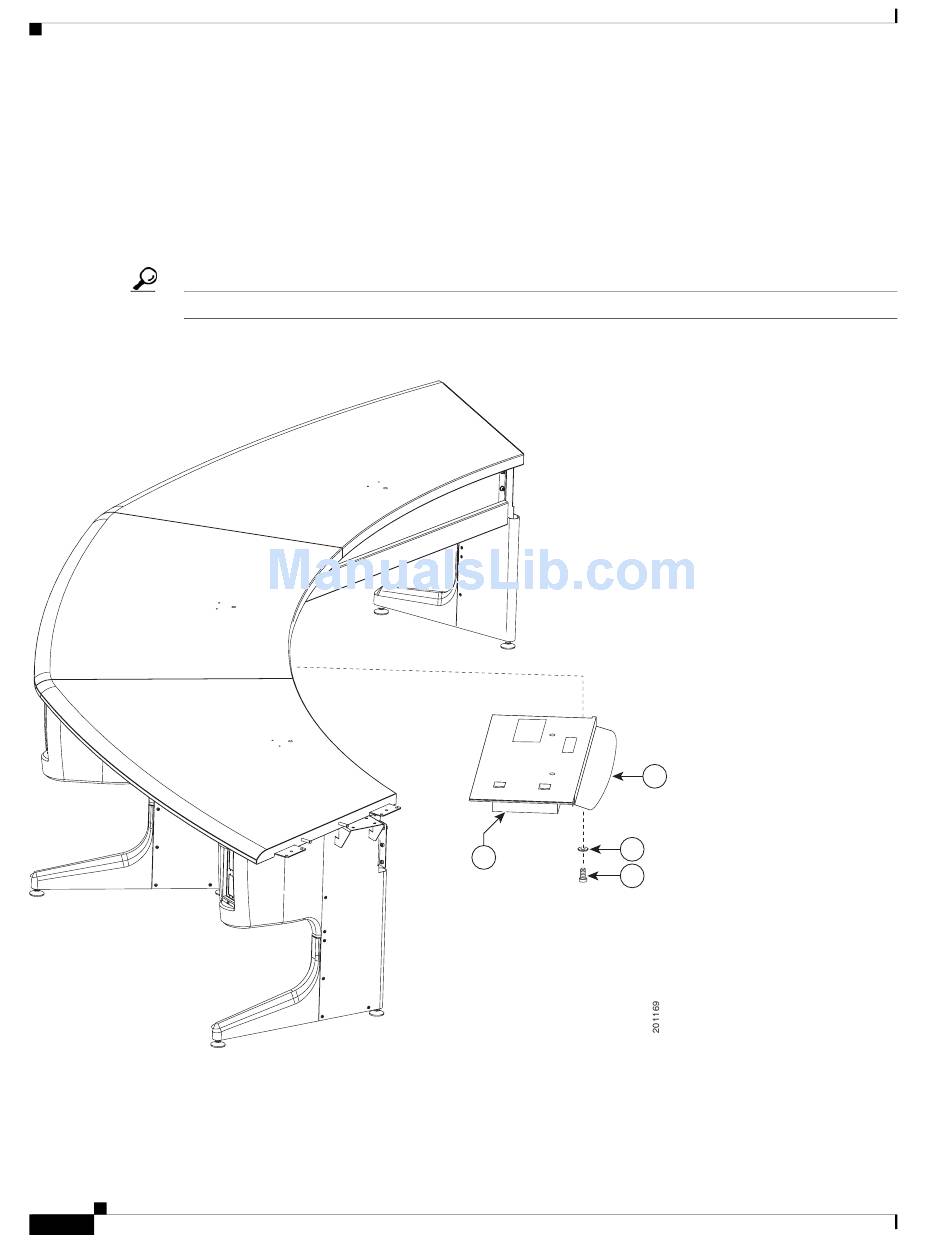

Figure 8-3 Projector Assembly
Cisco TelePresence System 3200
8-6
Make sure the center Microphone cable is routed securely within the cable channel on the underside
of the center Table segment before attaching the Projector mounting bracket.
Insert the screws and washers in the underside of the center Table segment to prepare for attaching
the Projector mounting bracket; then, slide the bracket between the two rows of screws and tighten
the screws.
