Chapter 4
Building the Lighting Assembly
Parts List
Step 10
Attach the left and right 4-foot Side Light fixtures to the left and right (vertical) Reflector Bottom ends.

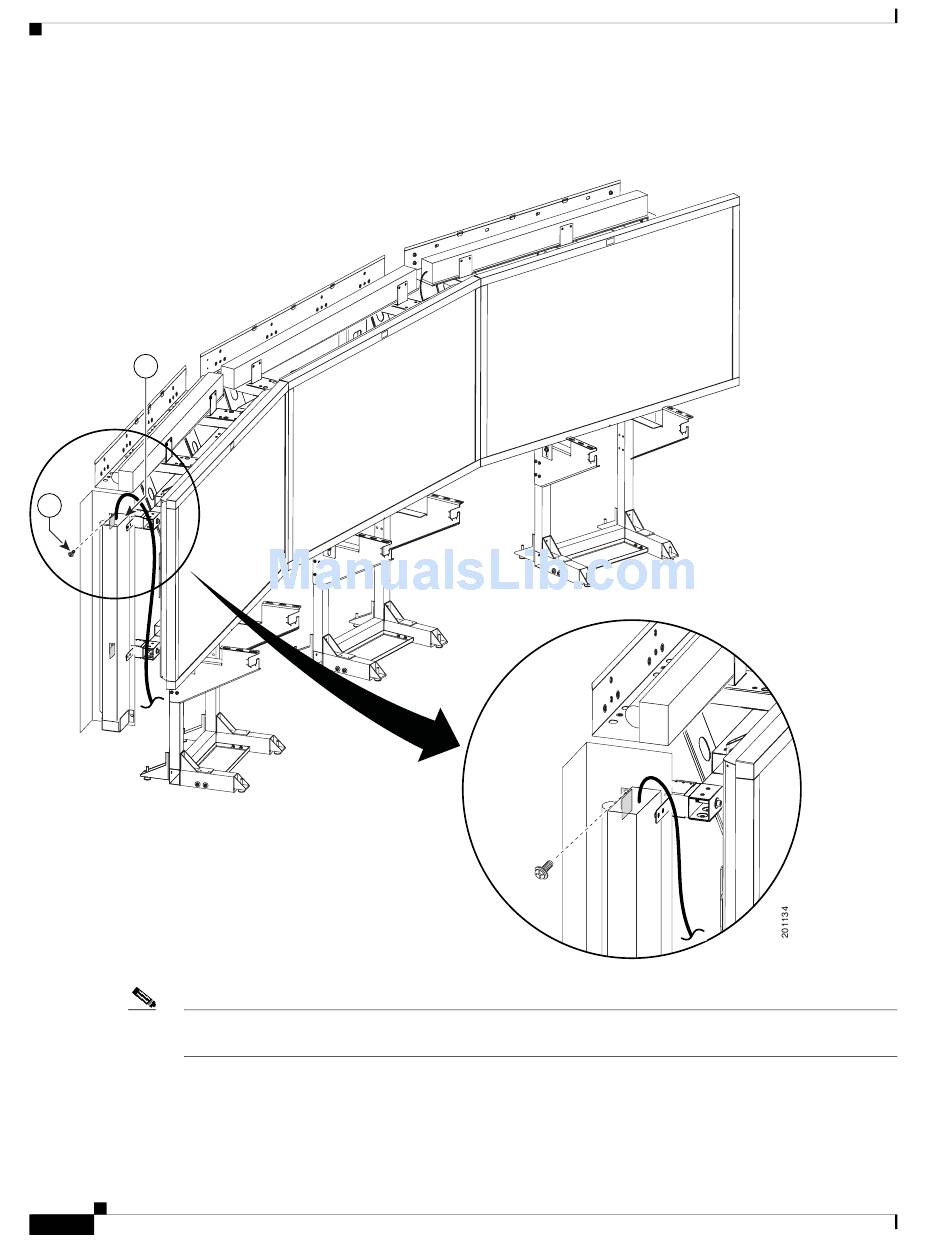

Figure 4-10
Left and Right 4-foot Side Light fixtures
25
27
The power cords for the Side Light fixtures should extend from the top through the Light Cup bracket
Note
(Figure
4-8).
Cisco TelePresence System 3200
4-12
OL-14521-01
