Chapter 4

Building the Lighting Assembly

Parts List

Step 19

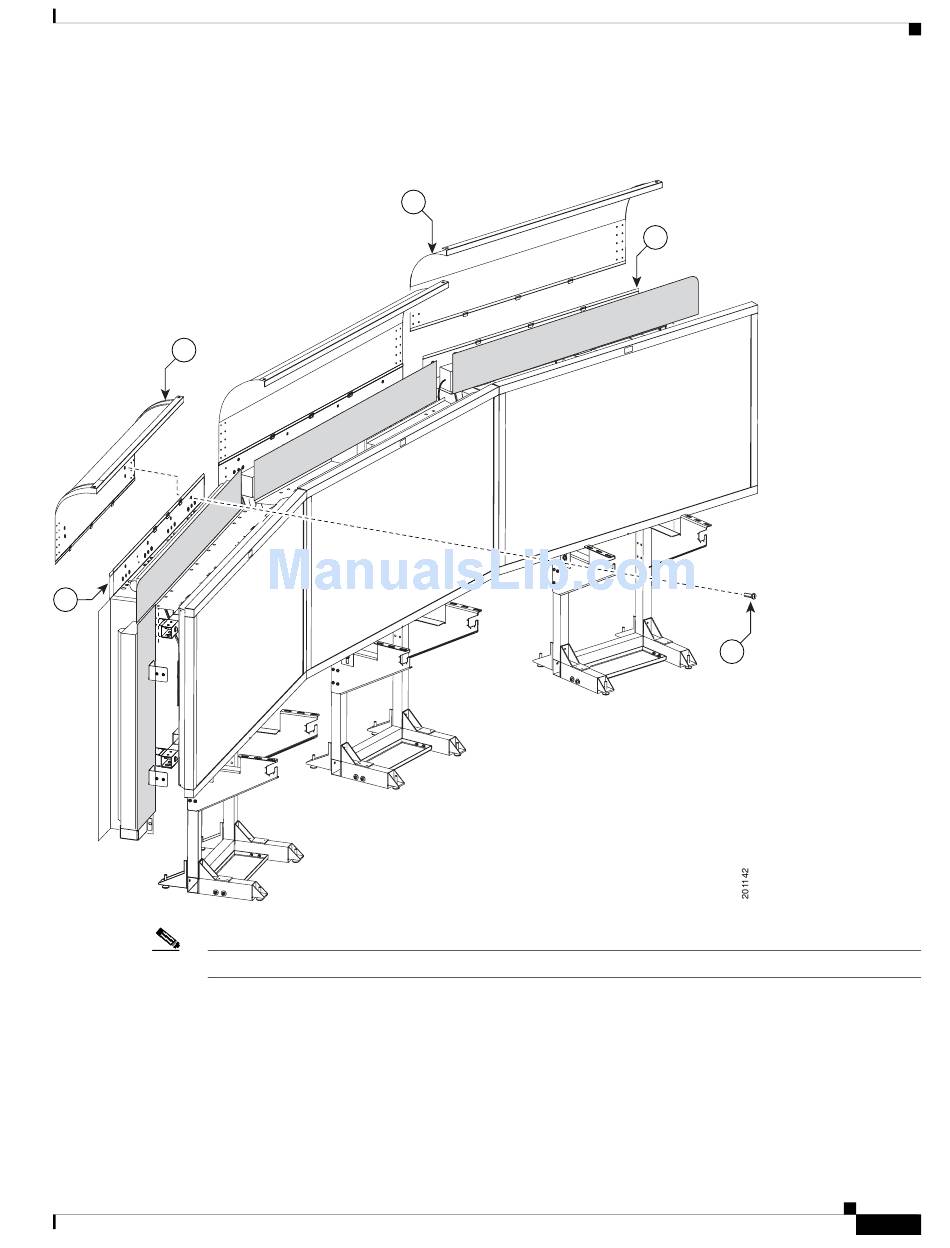

Attach the left and right Reflector tops to the left and right Reflector bottoms.

Figure 4-19

Left and Right Reflector tops

18

32

18

14

27

Do not tighten screws until completing

Step

22.

Note

Cisco TelePresence System 3200

4-21

OL-14521-01
