Chapter 9 Routing Power and Signal Cables
Step 9 Connect the Cisco Unified IP Phone, VGA peripheral, and projector HD video cables.
The VGA Peripheral cable is the free-hanging cable resting in the VGA module attached to the center
Note
Table segment.

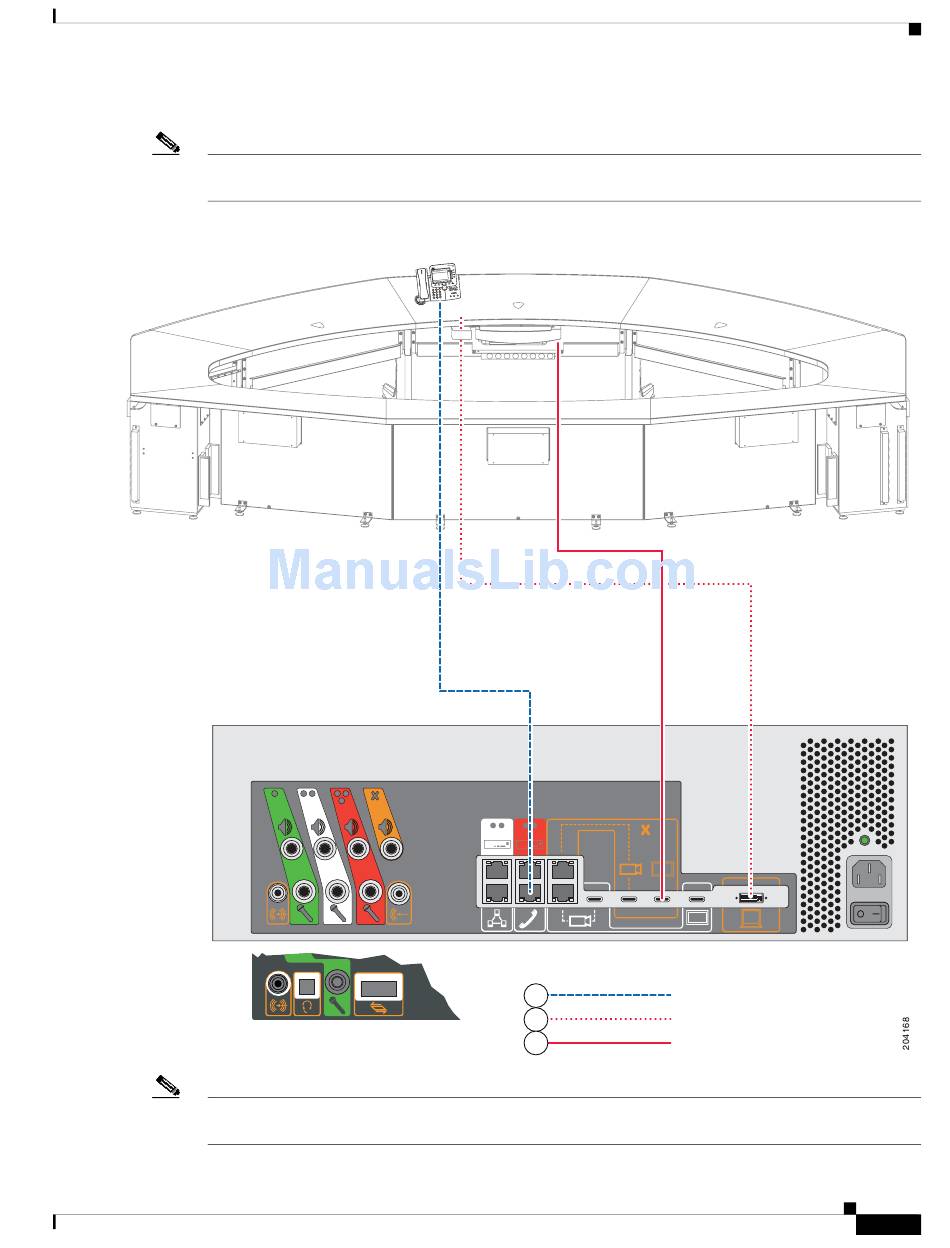

Figure 9-9 Cabling the Cisco Unified IP Phone, DVI-to-VGA, and Projector HD Video Cables
The VGA Peripheral cable is the free-hanging cable resting in the VGA module attached to the center
Note
Table segment.
OL-14521-01
Other Possible Configuration
6
IP Phone Signal
4
VGA Peripheral
2
Projector HD Video to Codec
Cisco TelePresence System 3200
Parts List
9-11
