Parts List
Step 8 Attach the center Table segment.
a.
b.
c.
d.

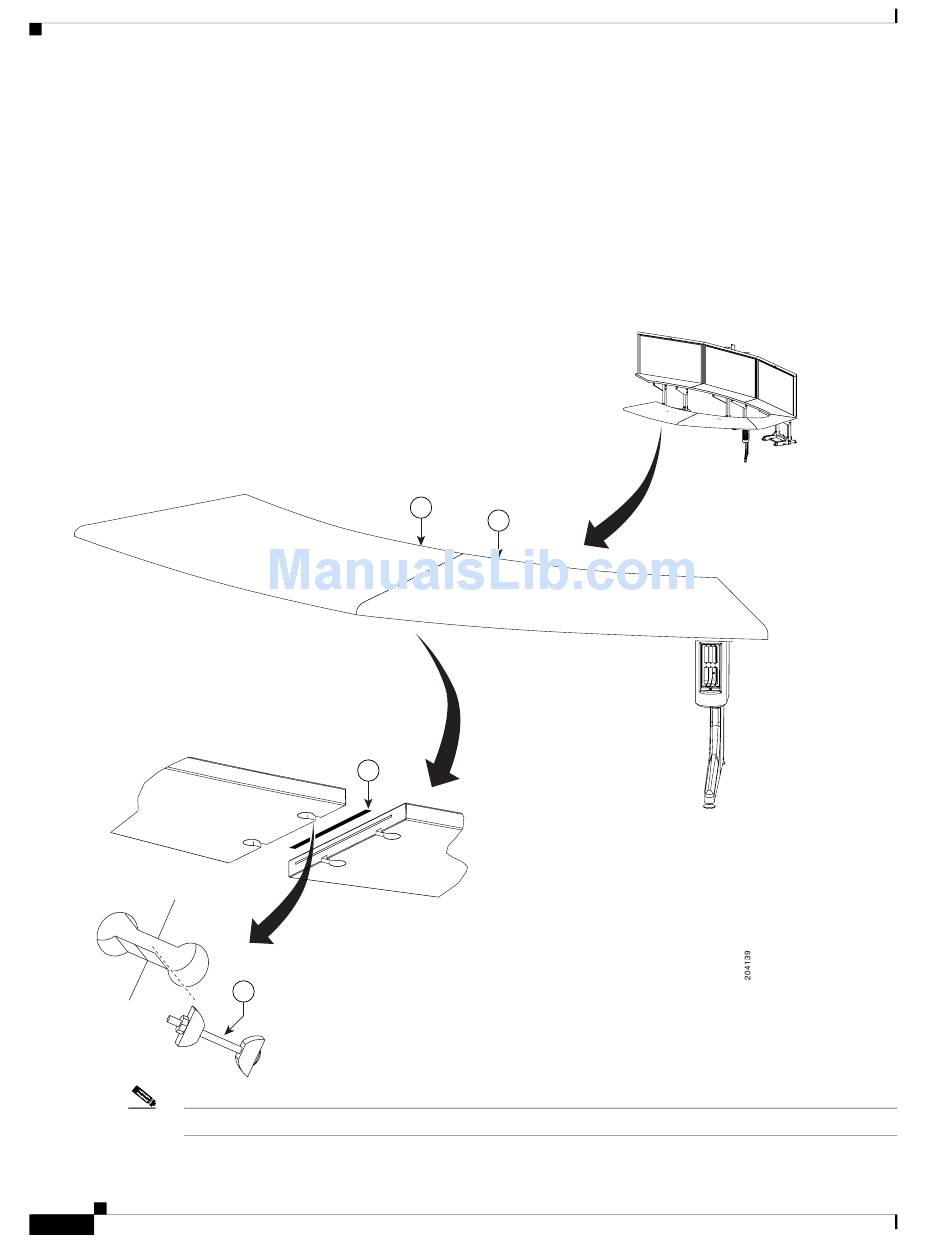

Figure 6-8 Center Table segment
The splines have different lengths. Use a spline that is slightly smaller than the slot in the table top.
Note
Cisco TelePresence System 3200
6-10
Make sure you tighten the draw bolt evenly on both sides.
While a draw bolt is being tightened, hold the table edges together to avoid damage to the draw bolt
or the table segment.
Tighten the draw bolts so the two table segments are connected snugly.
While one person is tightening the draw bolt from below, it is important for the support person to
maintain the alignment of the table segment edges.
12
10
6
5
Chapter 6 Building the First Row Table Assembly
OL-14521-01
