Chapter 4
Building the Lighting Assembly
Parts List
Step 20
Join the left, center, and right Reflector tops with the left and right Reflector Transition pieces.

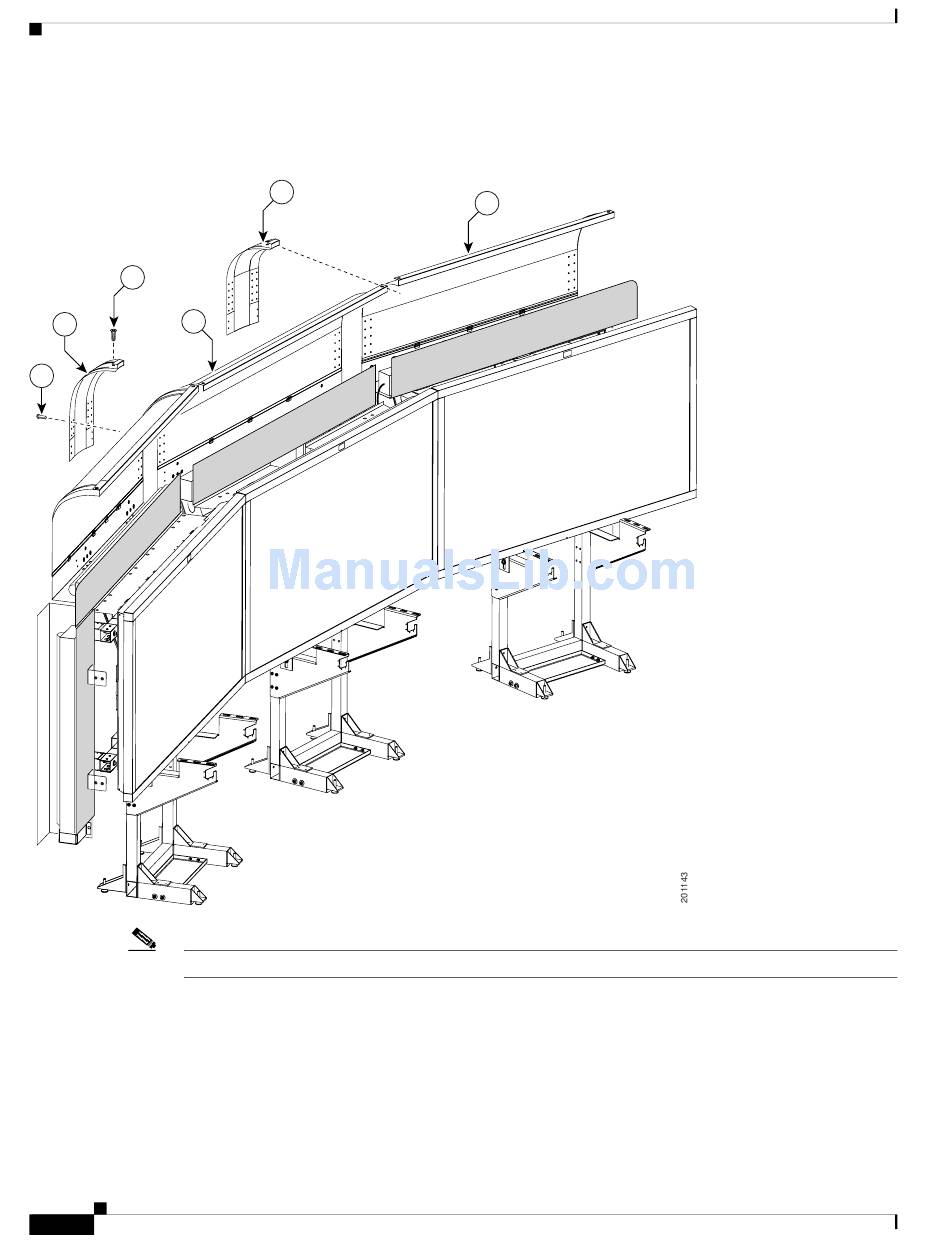

Figure 4-20
Left and Right Reflector Transition pieces
21
18
28
17
20
27
Do not tighten screws until completing
Step
22.
Note
Cisco TelePresence System 3200
4-22
OL-14521-01
