Chapter 7 Building the Second Row Table Assembly
Parts List
Step 17 Place the section 1 and section 2 tabletops on the table assembly, insert the plastic spline in the slot of
table section 1, and join the tables together, then insert and tighten the draw bolts evenly on each side
until the tabletop sections are joined together.
Note As you build the table tops, attempt to align the table feet with the table tops, and make sure that they
table tops are supported on at least three sides.

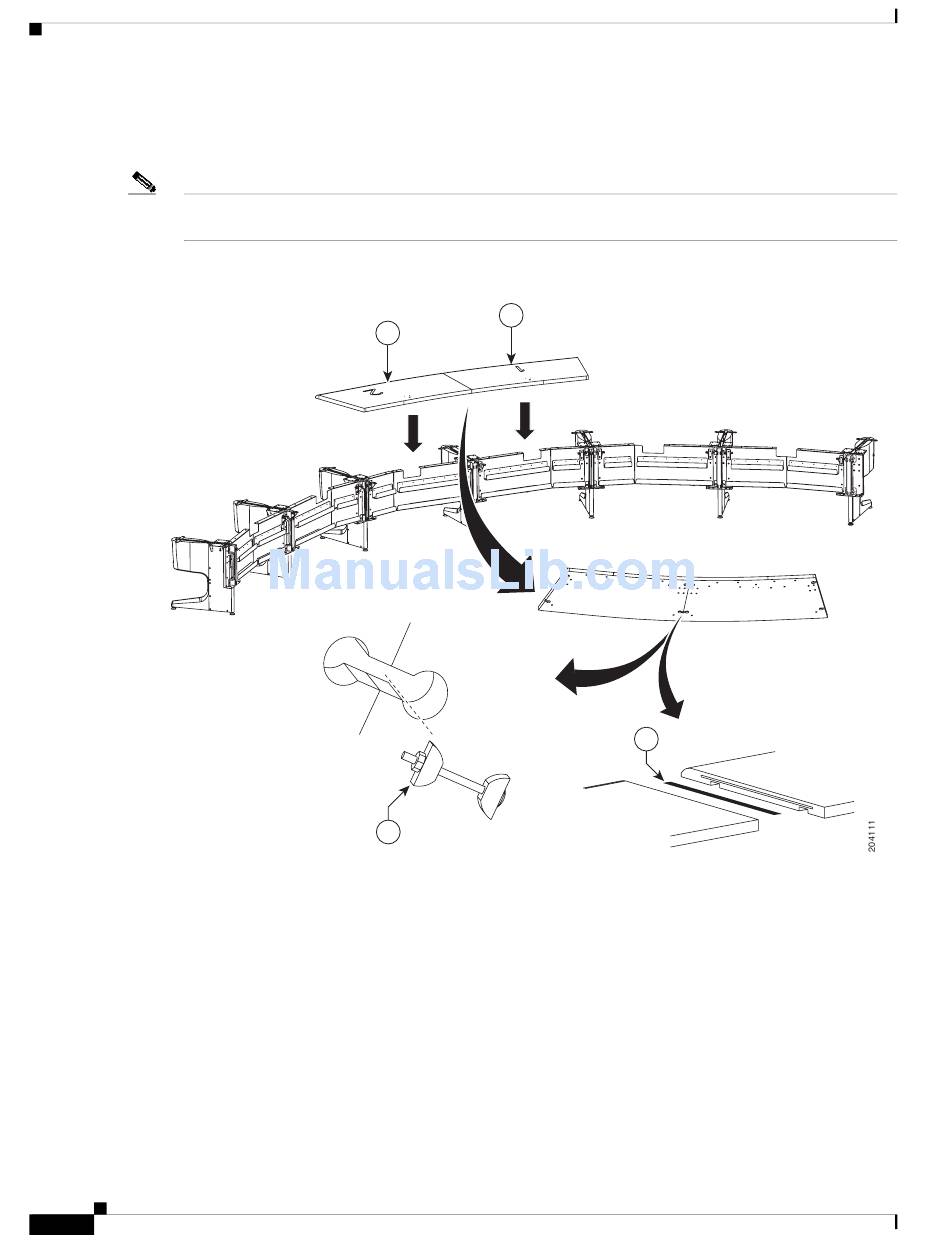

Figure 7-17 Tabletop Sections 1 and 2, Spline And Draw Bolts
