Chapter 7
Building the Second Row Table Assembly

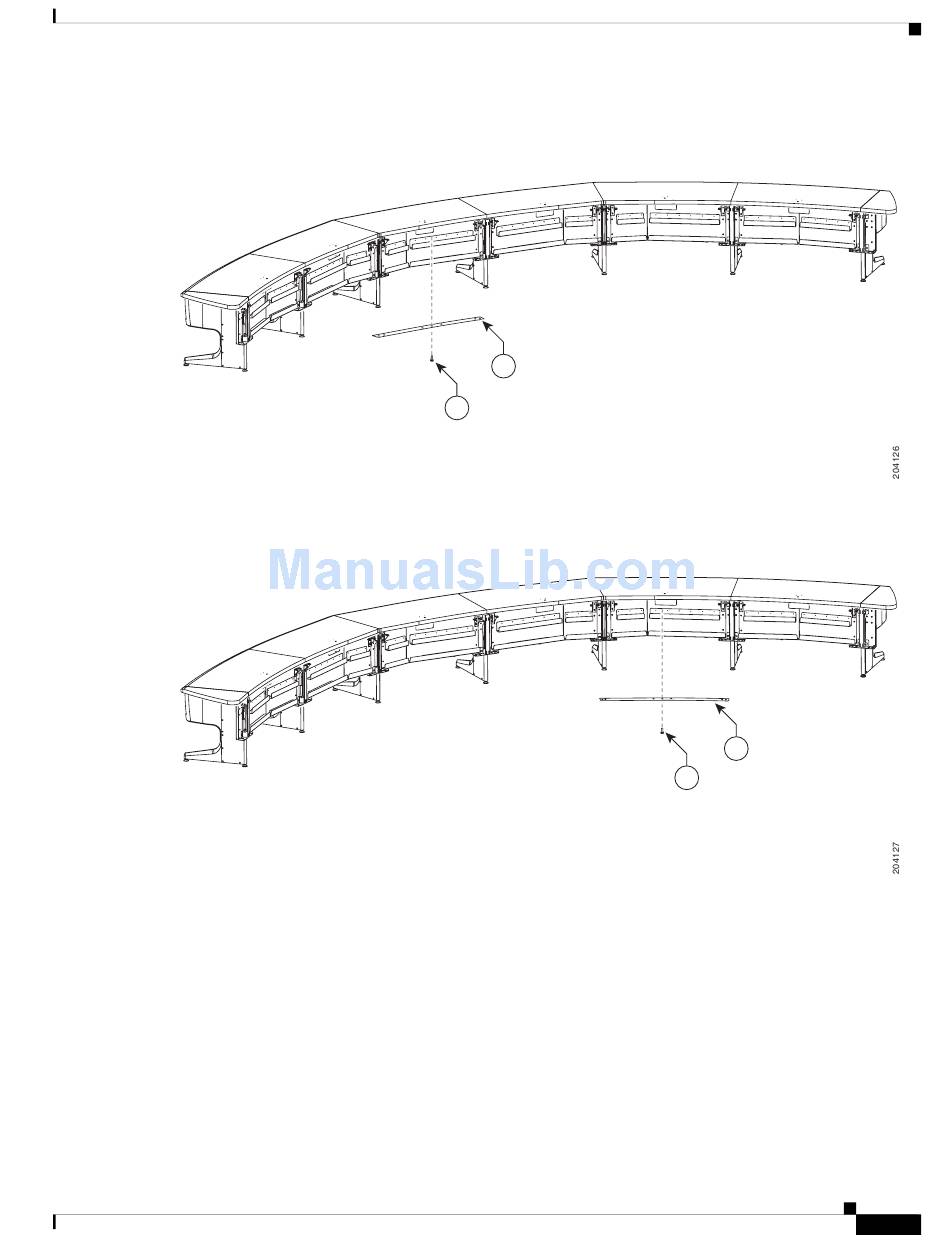

Step 33
Attach the privacy panel alignment bracket to the underside of table section 2.
Figure 7-33
Section 2 Privacy Panel Alignment Bracket
Attach the privacy panel alignment bracket to the underside of table section 3.
Step 34
Figure 7-34
Section 3 Privacy Panel Alignment Bracket
OL-14521-01
23
35
24
25
Cisco TelePresence System 3200
Parts List
7-35
