Chapter 4
Building the Lighting Assembly
Parts List
Step 21

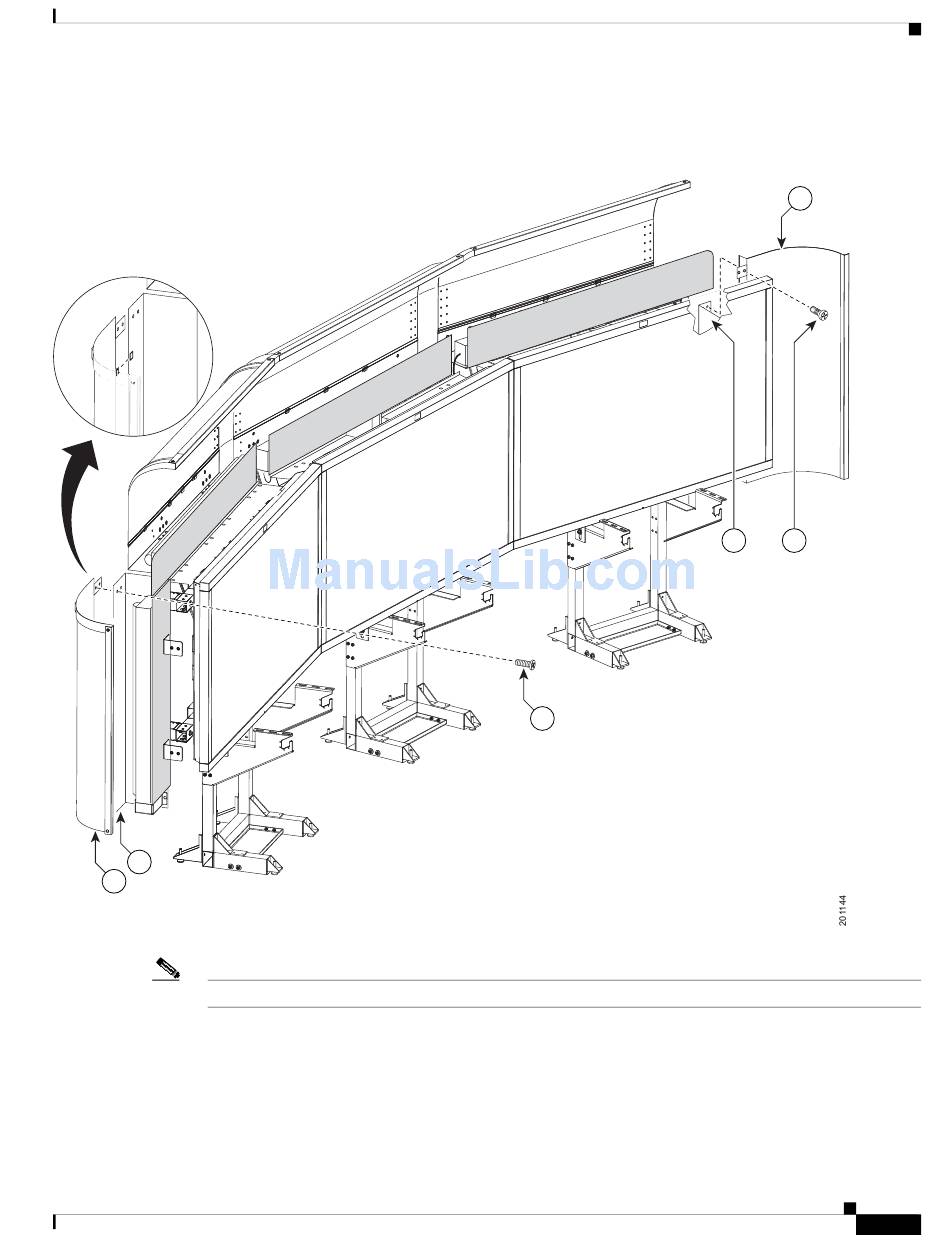

Attach the left and right (vertical) Reflector ends to the left and right (vertical) Reflector Bottom ends.
Figure 4-21
Left and Right (vertical) Reflector ends
19
33
27
27
15
19
Do not tighten screws until completing
Step
22.
Note
Cisco TelePresence System 3200
4-23
OL-14521-01
