2. System Configuration and Wiring

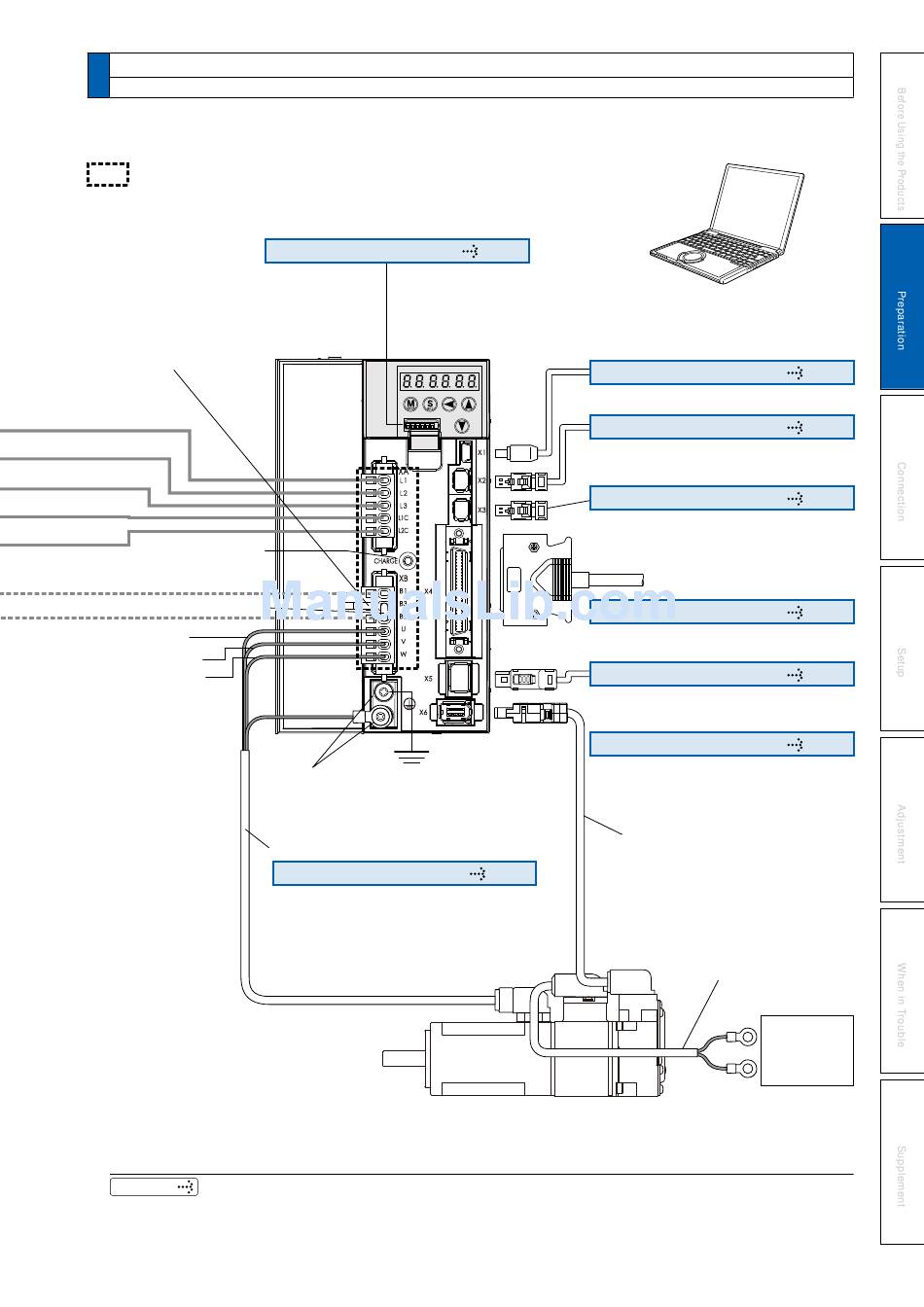

Overall Wiring (Connector type)
: High voltage
Handle lever
Use this for connec-
tor connection. Store
this after connection
for other occasions.
(Refer to P.2-19 for
connection.)
Charg lamp
(Red LED)
*1
Short circuit wire(B2-B3)
U-phase(red)
V-phase(white)
W-phase(black)
* These colors are used
for optional cable.
*1 Do not make displacement, wiring or inspection
while the LED is lit - cause of electric shock.
Related page
• P.2-10 "Wiring of the Main Circuit (Connector type)"
Motor Company's WEBsite
URL: http://industrial.panasonic.com/jp/i/fa_motor.html
Wiring to Connector, X7
• Monitor output
Protective earth Ground
(earth)
terminals
Junction cable for motor
Wiring to Connector, XB
• Connection to motor driving phase
and ground
PC (to be supplied
by customer)
P.2-29
Setup support software "PANATERM"
Please download from our web site.
Wiring to Connector, X1
• Connection to PC or host controller
Wiring to Connector, X2
• Connection to RS232, RS485
or host controller
Wiring to Connector, X3
• Connection to Safety by-pass plug
Wiring to Connector, X4
• Connection to host controller
Wiring to Connector, X5
• Connection to feedback scale
Wiring to Connector, X6
• Connection to encoder
Junction cable for encoder
P.2-10
• P.2-18 "Specifications of Motor connector"
P.2-20
P.2-20
P.2-22
P.2-23
P.2-24
P.2-26
Junction cable
for brake
DC Power supply for brake
DC24V
(to be supplied by customer)
2-9
