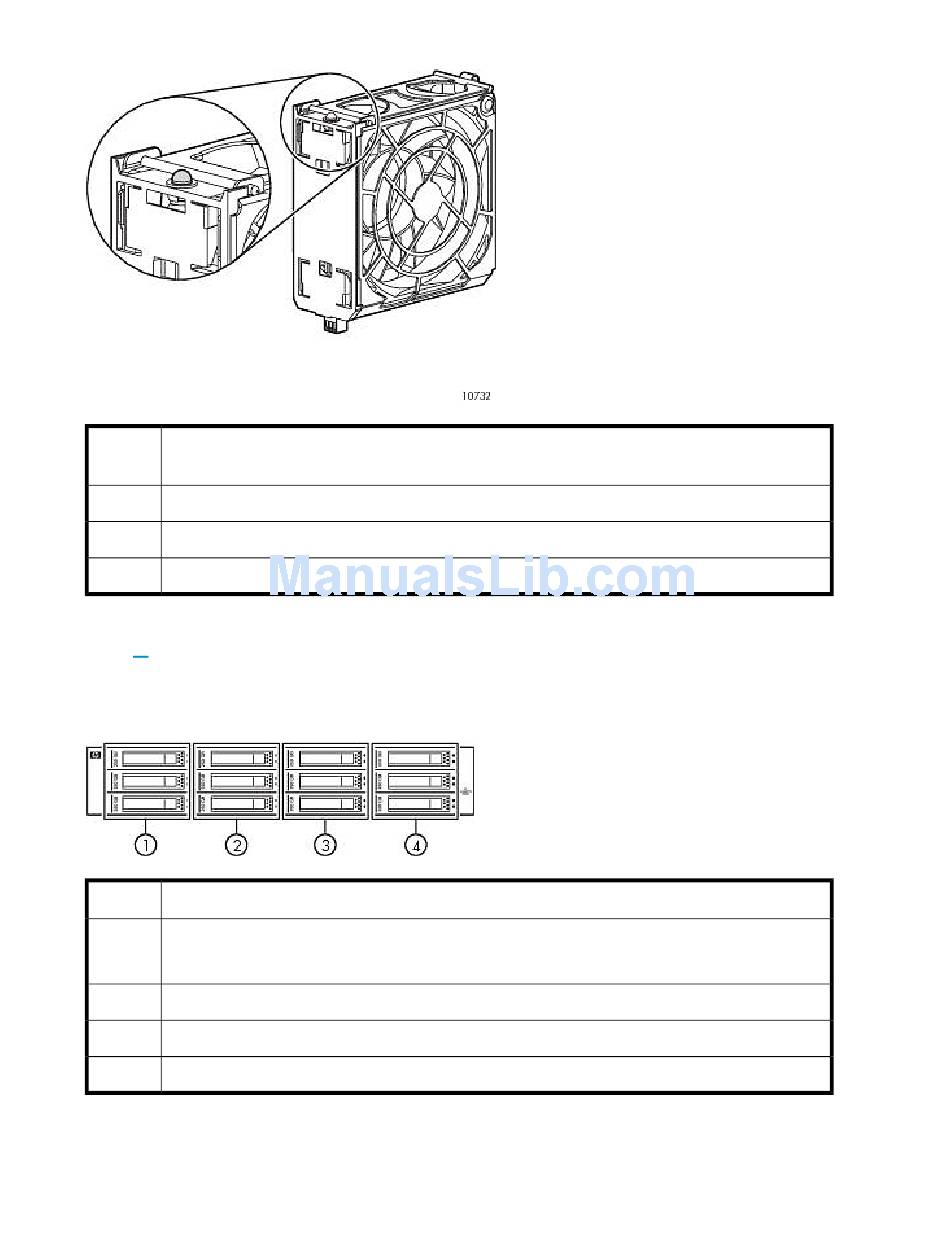

Fan LED

LED
Status
Off Power is not applied to the fan
Green Power is applied to the fan and the fan is functional
Amber Fan failure

VLS6000 series Disk Array Components, LEDs, and Buttons

Front Panel Components

Item Description
Drives 0, 1, and 2
1
(numbered from top to bottom)
2 Drives 3, 4, and 5
3 Drives 6, 7, and 8
4 Drives 9, 10, and 11
252 Component Identification
Description
