9. Remove the mounting bracket covers, and tighten the thumbscrews to secure the disk array to
the rack.

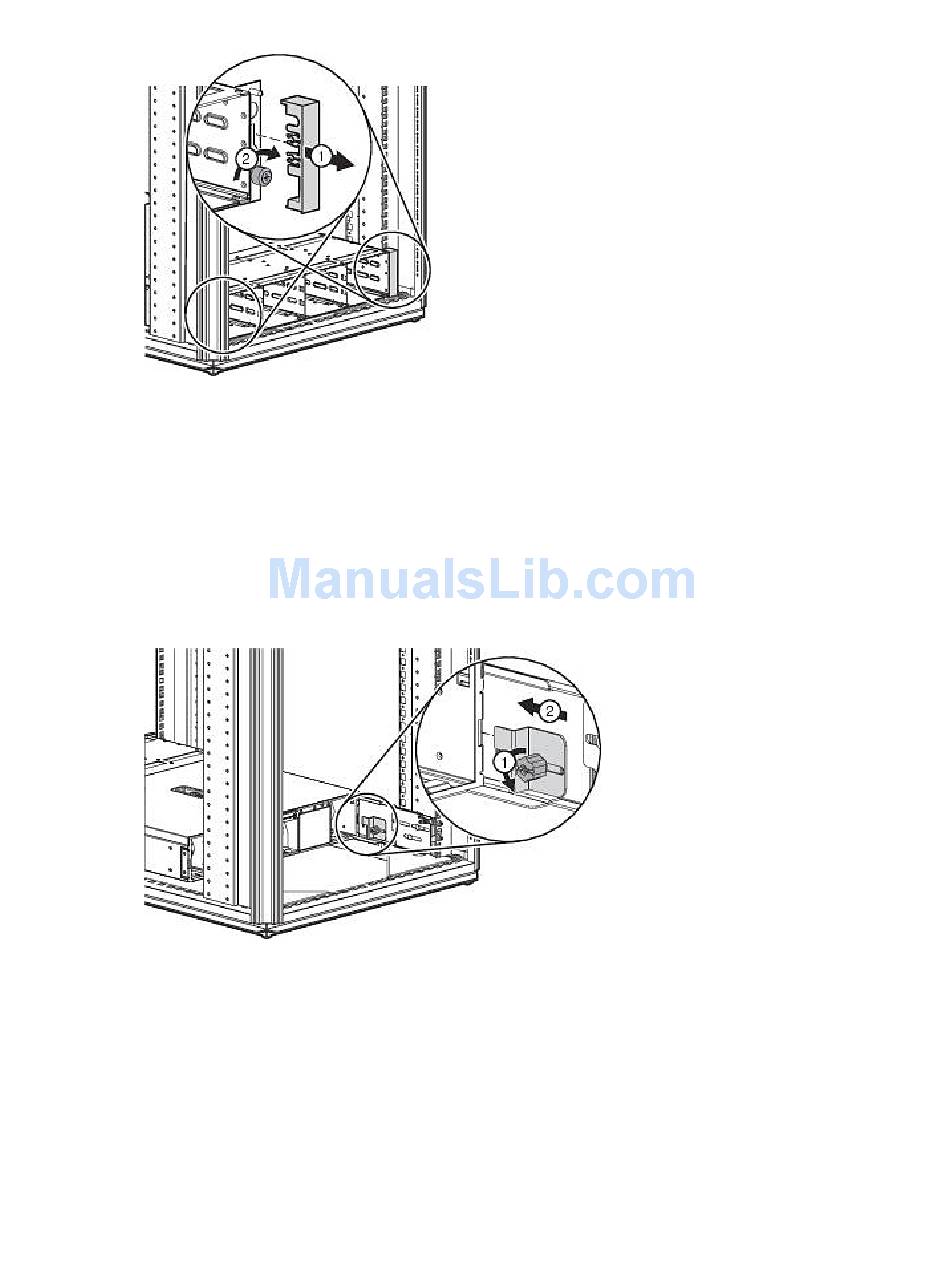

Figure 26 Removing the mounting bracket covers
.
10. Replace the mounting bracket covers.
11. If you intend to move the rack while the disk array is installed, adjust the shipping brackets on
each rail to secure the disk array to the rack.
a. Loosen the shipping bracket locknut.
b. Slide the bracket forward until it engages with the disk array chassis.
c. Tighten the locknut.
d. Repeat this procedure for the other rail.
Figure 27 Sliding the bracket forward to engage with the disk array
.
