Install Rails in the Rack

1. Locate the appropriate rail kit—part number 360332 003.
2. Install the two slide rails to the sides of the rack.
a. Adjust the side rail assemblies to the approximate rack depth.
b. At one side of the rack, align the rail holes with the holes in the rack and secure with the
provided mounting hardware using a #2 Phillips screwdriver.

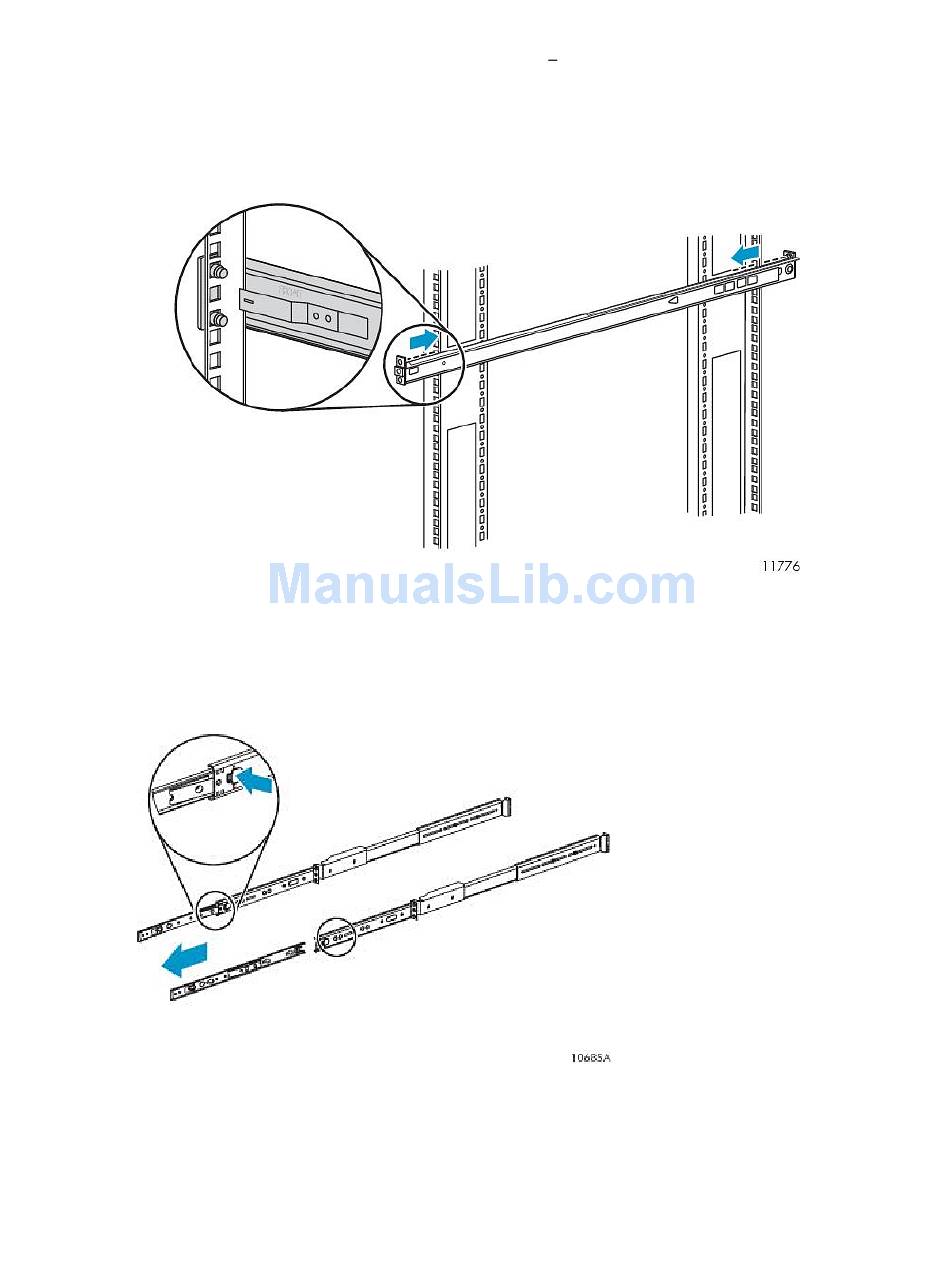

Figure 4 Install rails
.
c. Repeat these tasks for the rail on the other side of the rack.
3. Remove the inner slide rails from the outer slide rails. To do so, extend the inner slide rails from
the front of the rack until they lock in place. Then press the inner rail release latch (see
and pull the inner slide rails straight out.
Figure 5 Remove slides from rails
.
Figure 5)
