4. Connect the node power supply AC power connectors to two separate AC power sources using
the power cables provided

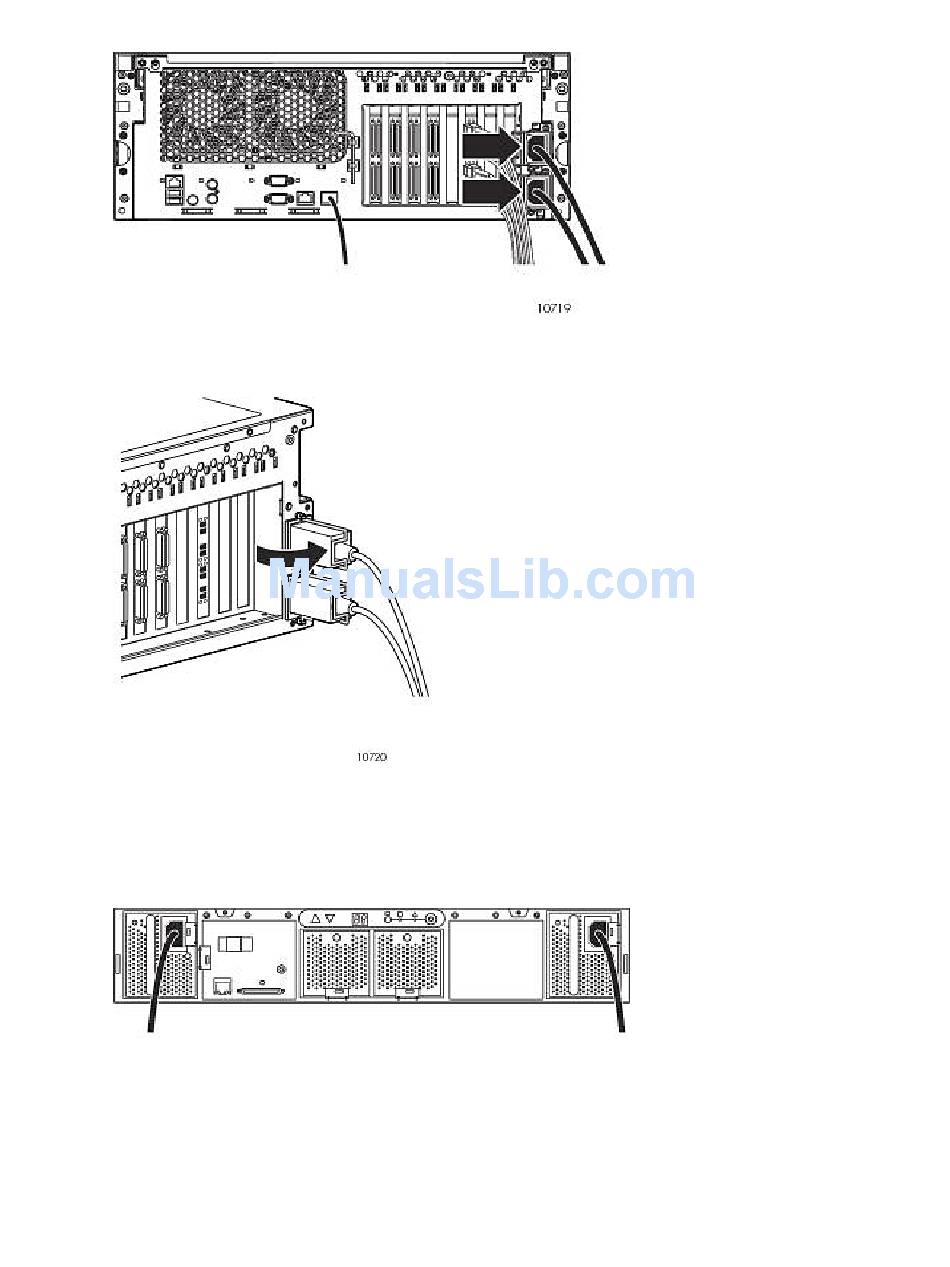

Figure 39 Connecting power supply AC power connectors to AC power sources
.
5. Secure the power cords with the retaining clips
Figure 40 Securing the power cords
.
6. Connect the disk array power supply AC power connectors on the left-side to one AC power
source using the power cables provided. Then, connect the disk array power supply AC power
connectors on the right-side to a second AC power source using the power cables provided
(Figure 41).
Figure 41 Connecting the disk array power supplies to an AC power source
.
Installation is complete. You may now power up the disk arrays and then the node as described in
Operation.
