Item Description
5 NIC 1 link/activity LED
6 NIC 2 link/activity LED

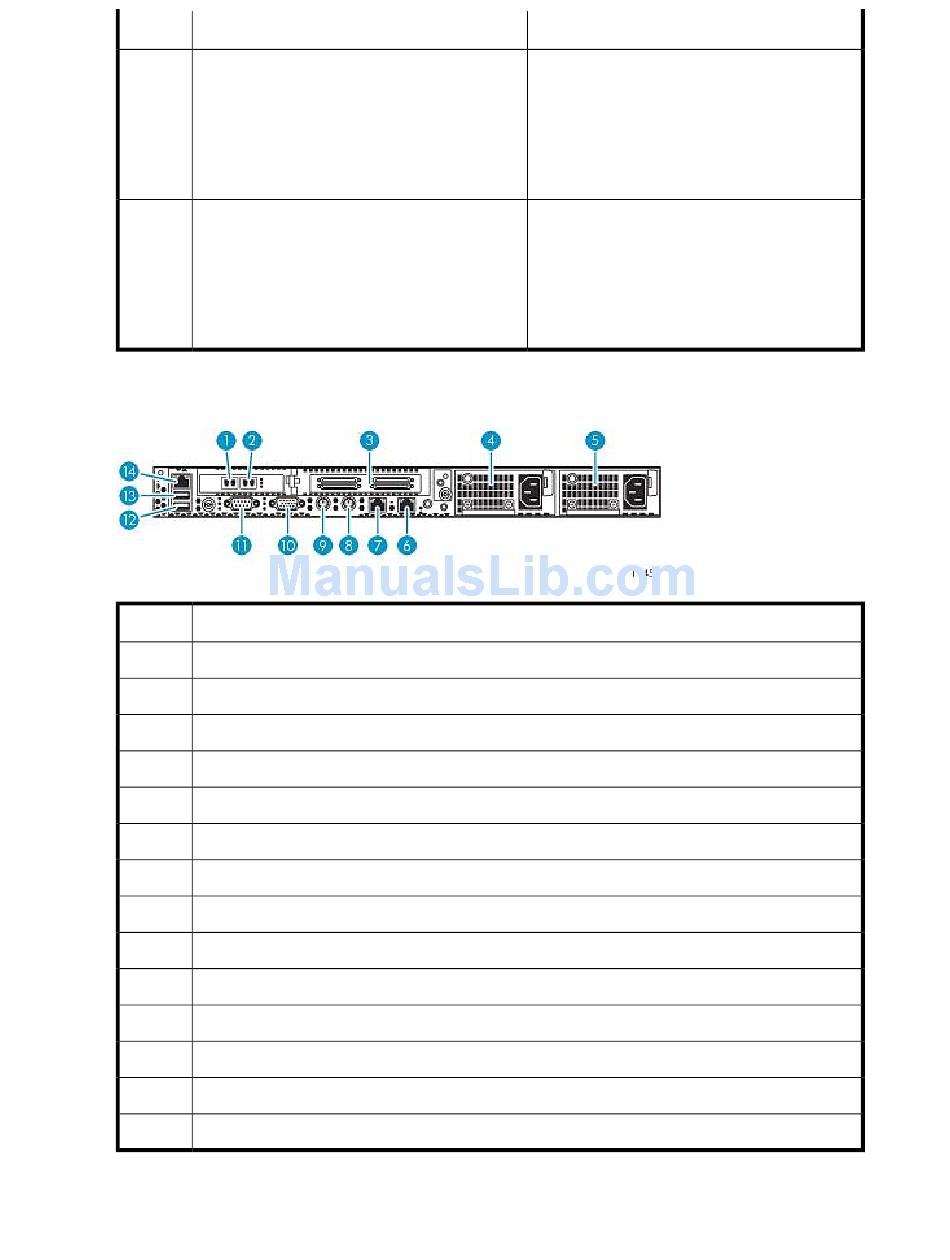

Rear Panel Components

Item Description
1 Dual port FC card, host port, port 0
2 Dual port FC card, host port, port 1
3 VHDCI connectors
4 Power supply 2
5 Power supply 1
6 NIC 2 connector (not used)
7 NIC 1 connector (user network)
8 Keyboard connector
9 Mouse connector
10 Video connector
11 Serial connector to access CLI
12 Rear USB connector
13 Rear USB connector
14 iLO 2 NIC connector (service port)
Status
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No link to network exists.
If power is off, the front panel LED is not active.
View the LEDs on the RJ-45 connector for status
by referring to Rear Panel LEDs and
Green = Network link exists.
Flashing green = Network link and activity exist.
Off = No link to network exists.
If power is off, the front panel LED is not active.
View the LEDs on the RJ-45 connector for status
by referring to Rear Panel LEDs and
