Item Description
7 SCSI hard drive 0
8 Hard drive blank
9 Power supply 1 (primary)
10 Power supply 2 (backup)

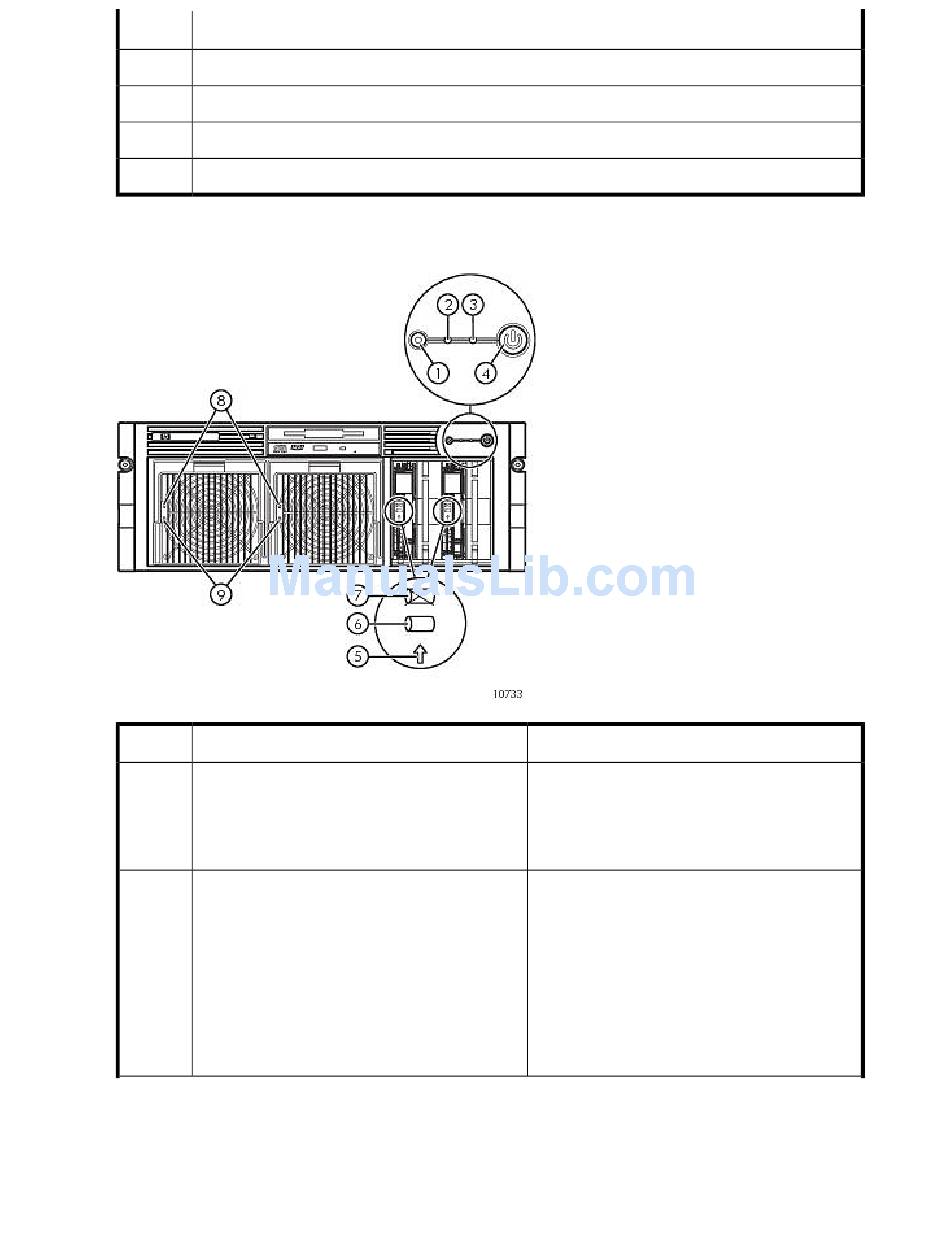

Front Panel LEDs and Buttons

Item Description
1 Unit identification button/LED
2 Internal health LED
Status
• Blue = Identification is activated.
• Blue flashing = System being managed re-
motely.
• Off = Identification is deactivated.
• Green = System health is normal.
• Amber = System is degraded. To identify the
component in a degraded state, refer to the
QuickFind Diagnostic Display LEDs.
• Red = System is critical. To identify the com-
ponent in a critical state, refer to QuickFind
Diagnostic Display LEDs.
• Off = System health is normal (when in
standby mode).
HP StorageWorks 243
