Figure 32 VLS6200 — Connecting the VHDCI connectors to disk arrays
.
Item
Description
1
VHDCI connector A1, connect to Disk array 0
2
VHDCI connector A2, connect to Disk array 1
3
VHDCI connector B1, connect to Disk array 2
4
VHDCI connector B2, connect to Disk array 3

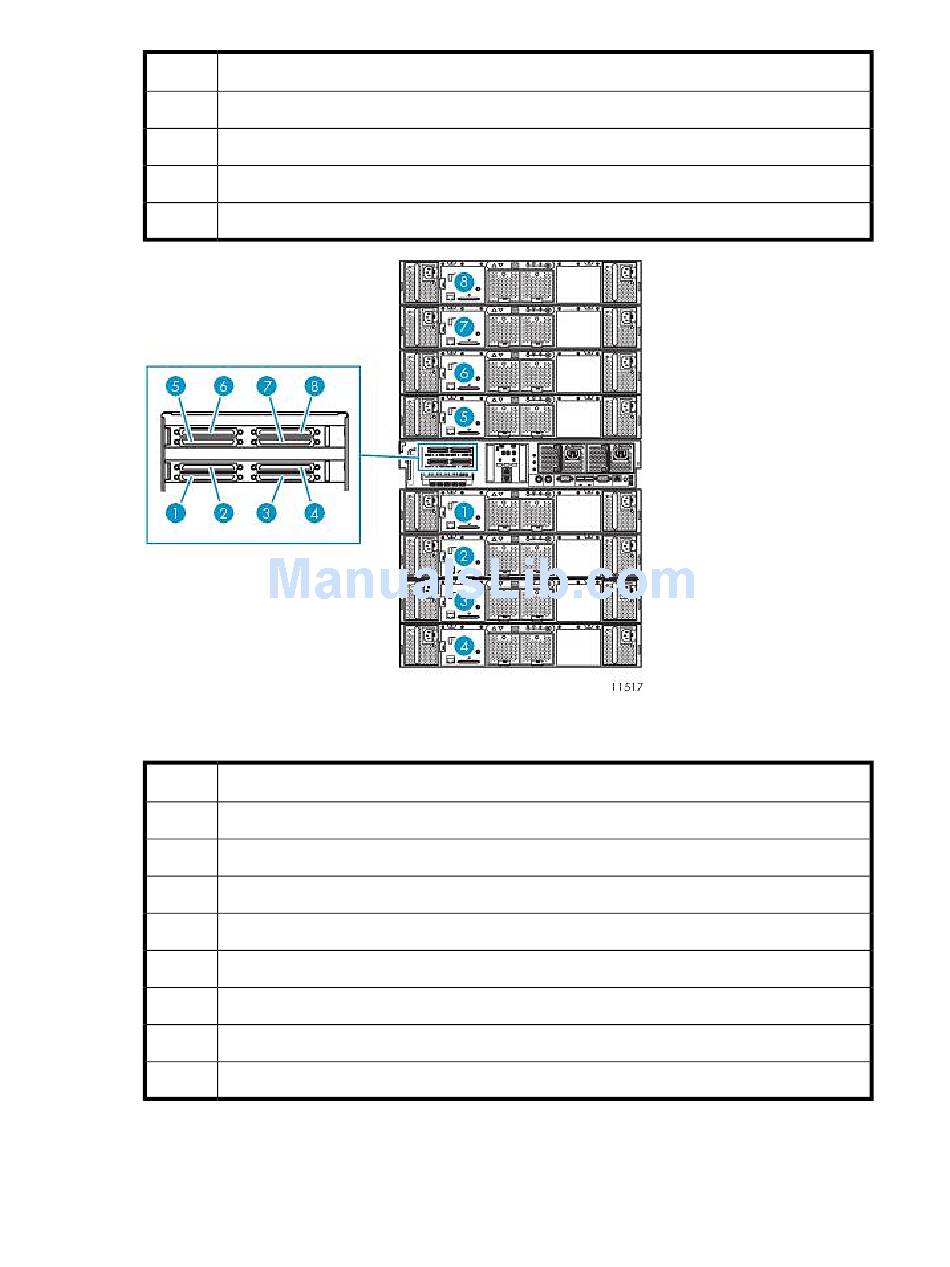

Figure 33 VLS6600 — Connecting the VHDCI connectors to disk arrays
.
Item
Description
1
VHDCI connector slot 4, A1, connect to disk array enclosure 0
2
VHDCI connector slot 4, A2, connect to disk array enclosure 1
3
VHDCI connector slot 4, B1, connect to disk array enclosure 2
4
VHDCI connector slot 4, B2, connect to disk array enclosure 3
5
VHDCI connector slot 5, A1, connect to disk array enclosure 4
6
VHDCI connector slot 5, A2, connect to disk array enclosure 5
7
VHDCI connector slot 5, B1, connect to disk array enclosure 6
8
VHDCI connector slot 5, B2, connect to disk array enclosure 7
