Loosen the locknut on the shipping bracket, and move the bracket to the rearmost position on the
rail.

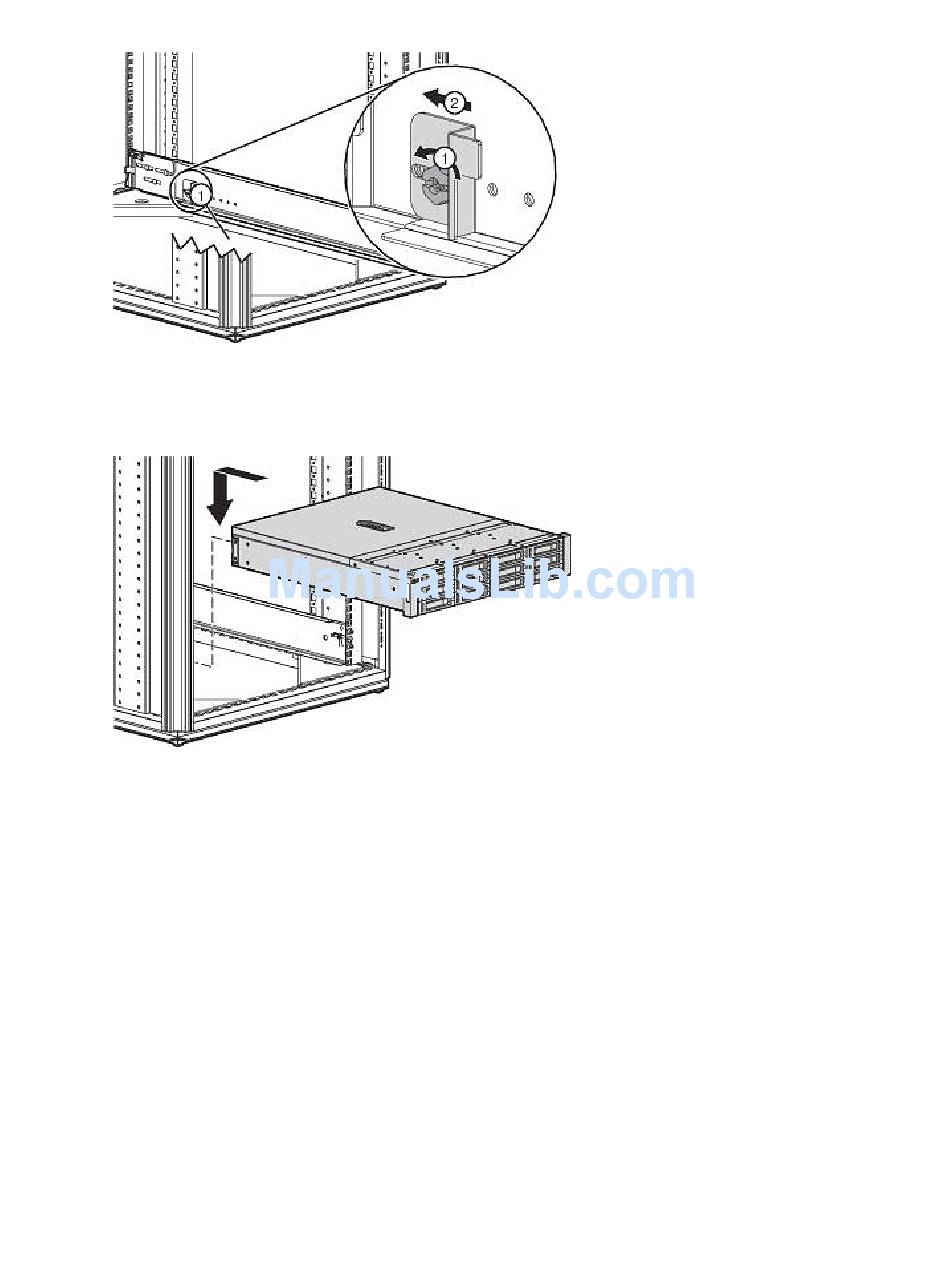

Figure 24 Loosening the locknut on the shipping bracket
.
7.
Repeat steps 4 through 6 for the left rack rail.
8.
Align the disk array with the rails, and slide it into the rack.
Figure 25 Aligning the disk array with the rails
.
52
Hardware Installation
