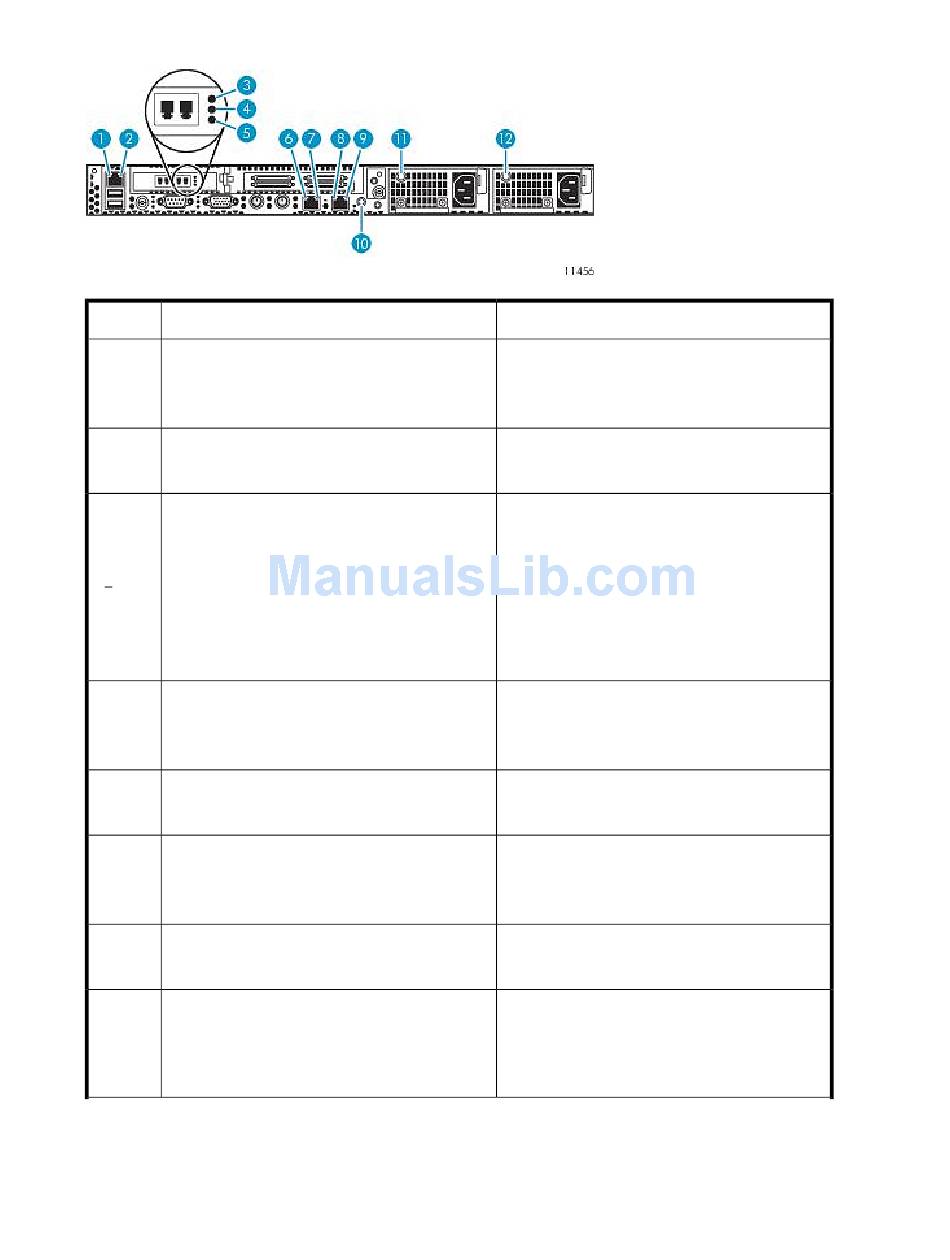

Rear Panel LEDs and Buttons

Item Description
1 iLO 2 NIC activity LED
2 iLO 2 NIC link LED
3 5 FC port LEDs
6 10/100/1000 NIC 1 activity LED
7 10/100/1000 NIC 1 link LED
8 10/100/1000 NIC 2 activity LED
9 10/100/1000 NIC 2 link LED
10 UID button/LED
226 Component Identification
Status
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
Green = Link exists.
Off = No link exists.
Red, green, and amber on or flashing = Power
on.
LED that is on/flashing represents the link speed
(red = 1 Gbps, green = 2 Gbps, amber = 4
Gbps) = Online, I/O activity.
Red, green, and amber flashing alternately =
Firmware error.
Red, green, and amber off = Power off.
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
Green = Link exists.
Off = No link exists.
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
Green = Link exists.
Off = No link exists.
Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
