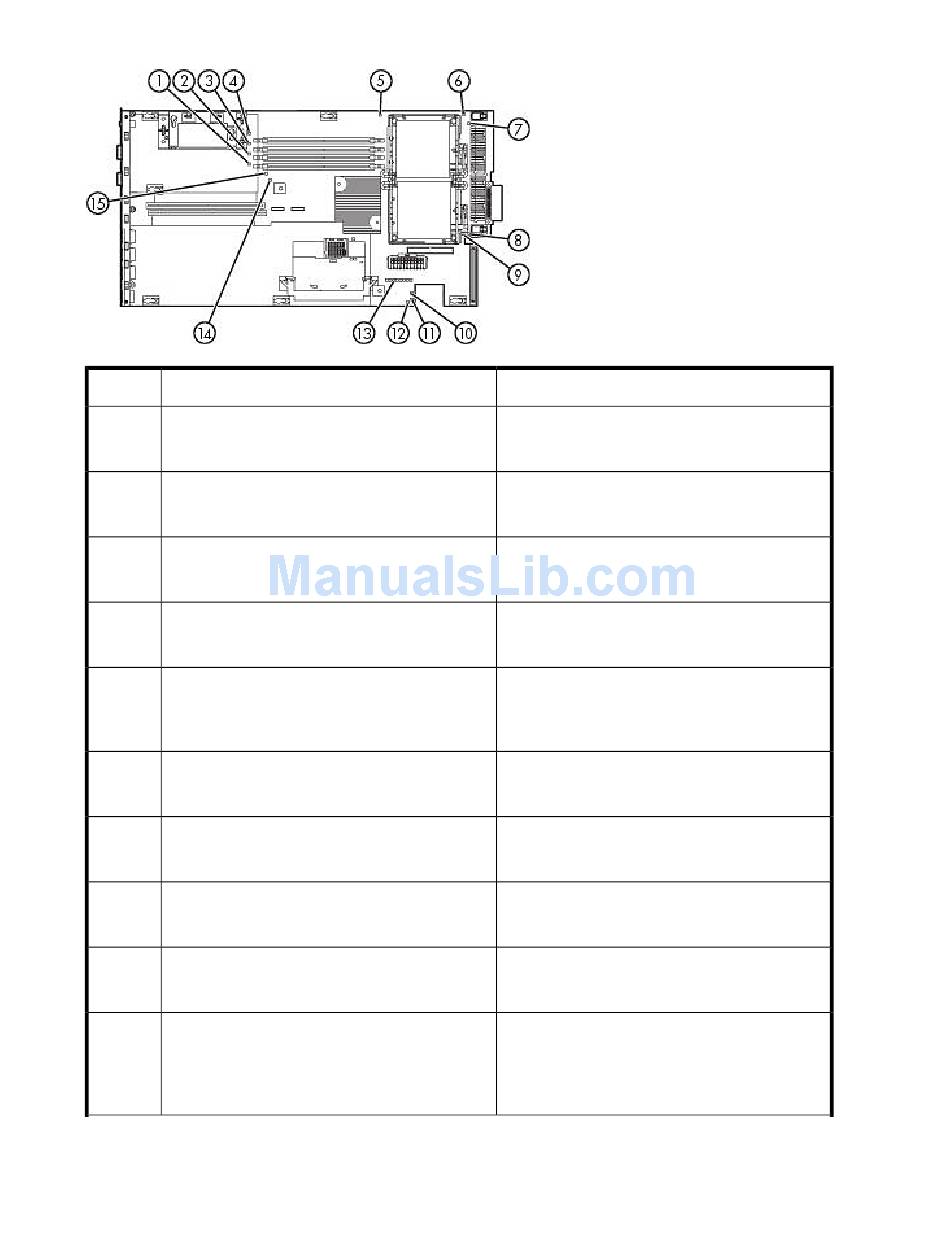

System Board LEDs

Item Description
1 DIMM 4B failure
2 DIMM 3B failure
3 DIMM 2A failure
4 DIMM 1A failure
5 Overtemperature
6 Processor 1 failure
7 PPM 1 failure
8 PPM 2 failure
9 Processor 2 failure
10 Power supply signal connector interlock failure
220 Component Identification
Status
• Amber = DIMM has failed.
• Off = DIMM is operating normally.
• Amber = DIMM has failed.
• Off = DIMM is operating normally.
• Amber = DIMM has failed.
• Off = DIMM is operating normally.
• Amber = DIMM has failed.
• Off = DIMM is operating normally.
• Amber = System has reached cautionary or
critical temperature level.
• Off = Temperature is OK.
• Amber = Processor has failed.
• Off = Processor is operating normally.
• Amber = PPM has failed.
• Off = PPM is operating normally.
• Amber = PPM has failed.
• Off = PPM is operating normally.
• Amber = Processor has failed.
• Off = Processor is operating normally.
• Amber = Power supply signal cable is not
connected.
• Off = Power supply signal cable is connec-
ted.
