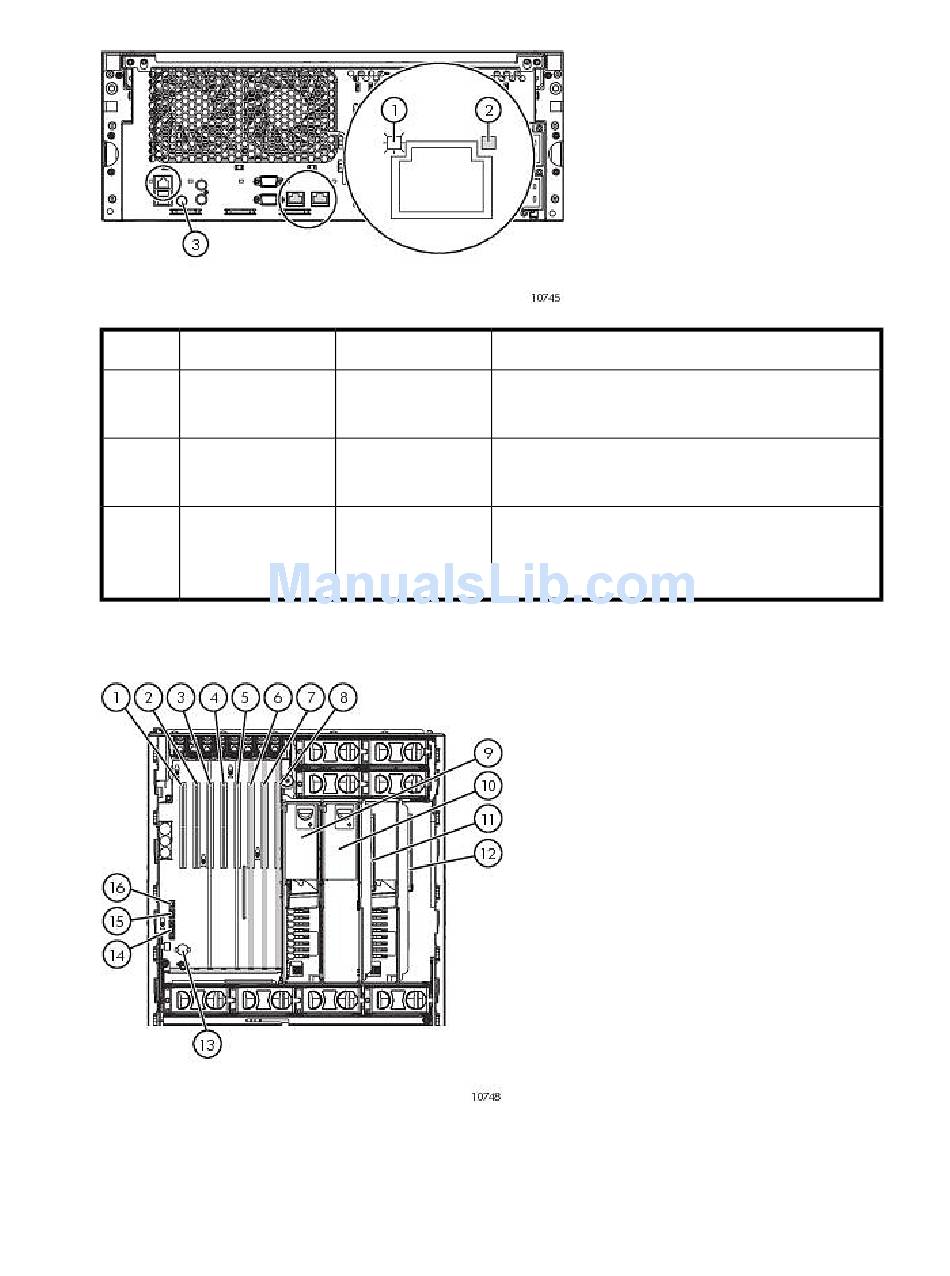

Rear Panel LEDs and Buttons
Item
Description
1
Ethernet activity LED
2
Ethernet link LED
Rear Unit Identifica-
3
tion button and LED
System Board Components
LED color
Status
•
Green
•
•
Green
•
•
•
Green
•
On or flashing = Network activity.
Off = No network activity.
On = Linked to the network.
Off = Not linked to the network.
Blue = Identification is activated.
Blue flashing = System being managed remotely.
Off = Identification is deactivated.
HP StorageWorks
247
