Item Description
11 10/100/1000 NIC 2 (service port)
12 Rear USB connector
1
VLS6105 shown

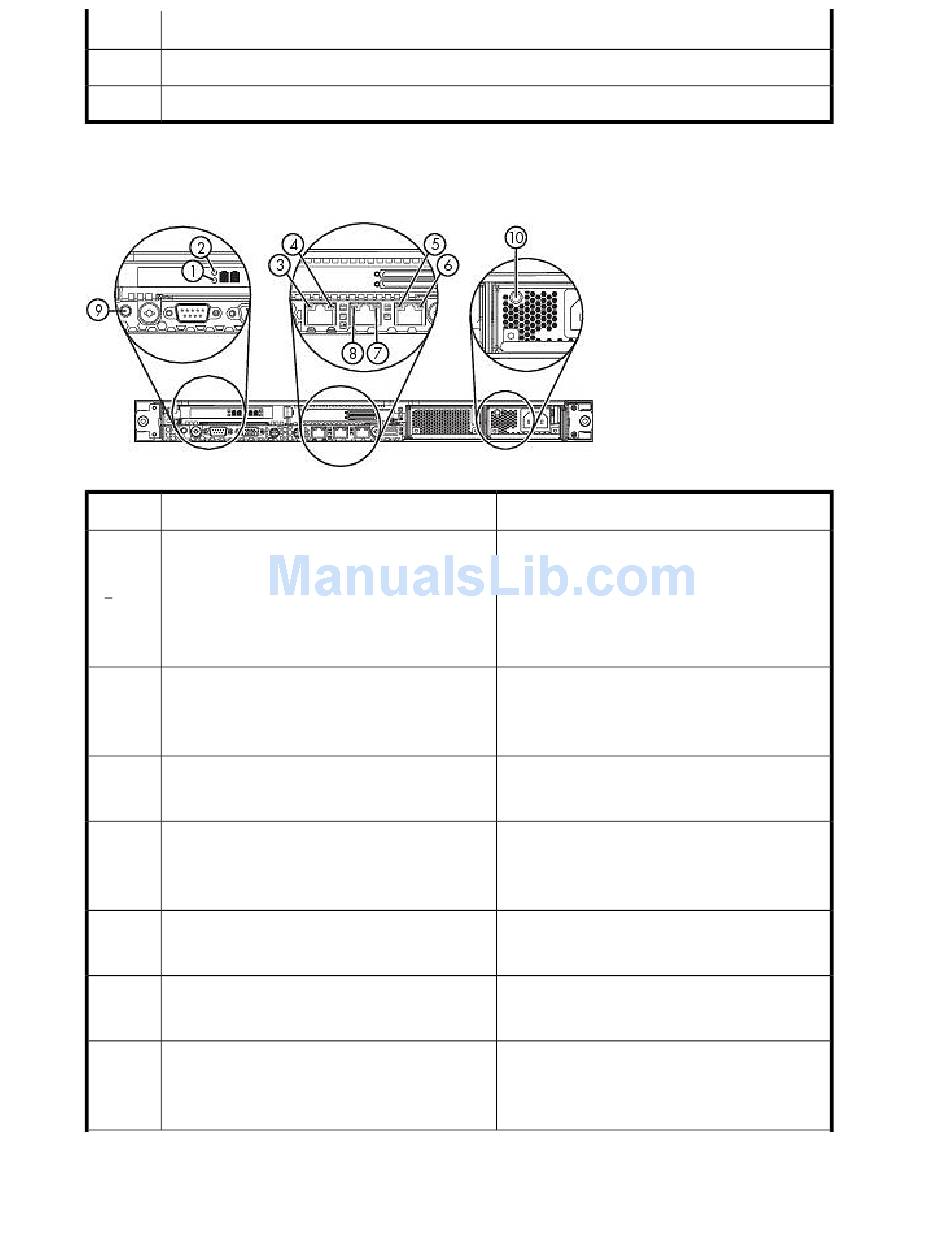

Rear Panel LEDs and Buttons

Item Description
1 2
FC host port LEDs
3 iLO activity LED
4 iLO link LED
5 10/100/1000 NIC 2 activity LED
6 10/100/1000 NIC 2 link LED
7 10/100/1000 NIC 1 link LED
8 10/100/1000 NIC 1 activity LED
218 Component Identification
1
Status
• Green and Amber = Power on.
• Green = Online.
• Amber = Signal acquired.
• Amber flashing = Loss of synchronization.
• Green and Amber flashing = Firmware error.
• Green = Activity exists.
• Flashing green = Activity exists.
• Off = No activity exists.
• Green = Link exists.
• Off = No link exists.
• Green = Network activity.
• Flashing green = Network activity.
• Off = No network activity.
• Green = Linked to the network.
• Off = Not linked to the network.
• Green = Linked to the network.
• Off = Not linked to the network.
• Green = Network activity.
• Flashing green = Network activity.
• Off = No network activity.
