NOTE:
FBDIMMs do not seat fully if turned the wrong way.
When replacing a FBDIMM, align the FBDIMM with the slot and insert the FBDIMM firmly (1), pressing
down until the FBDIMM snaps into place. When fully seated, the FBDIMM slot latches (2) lock into
place.

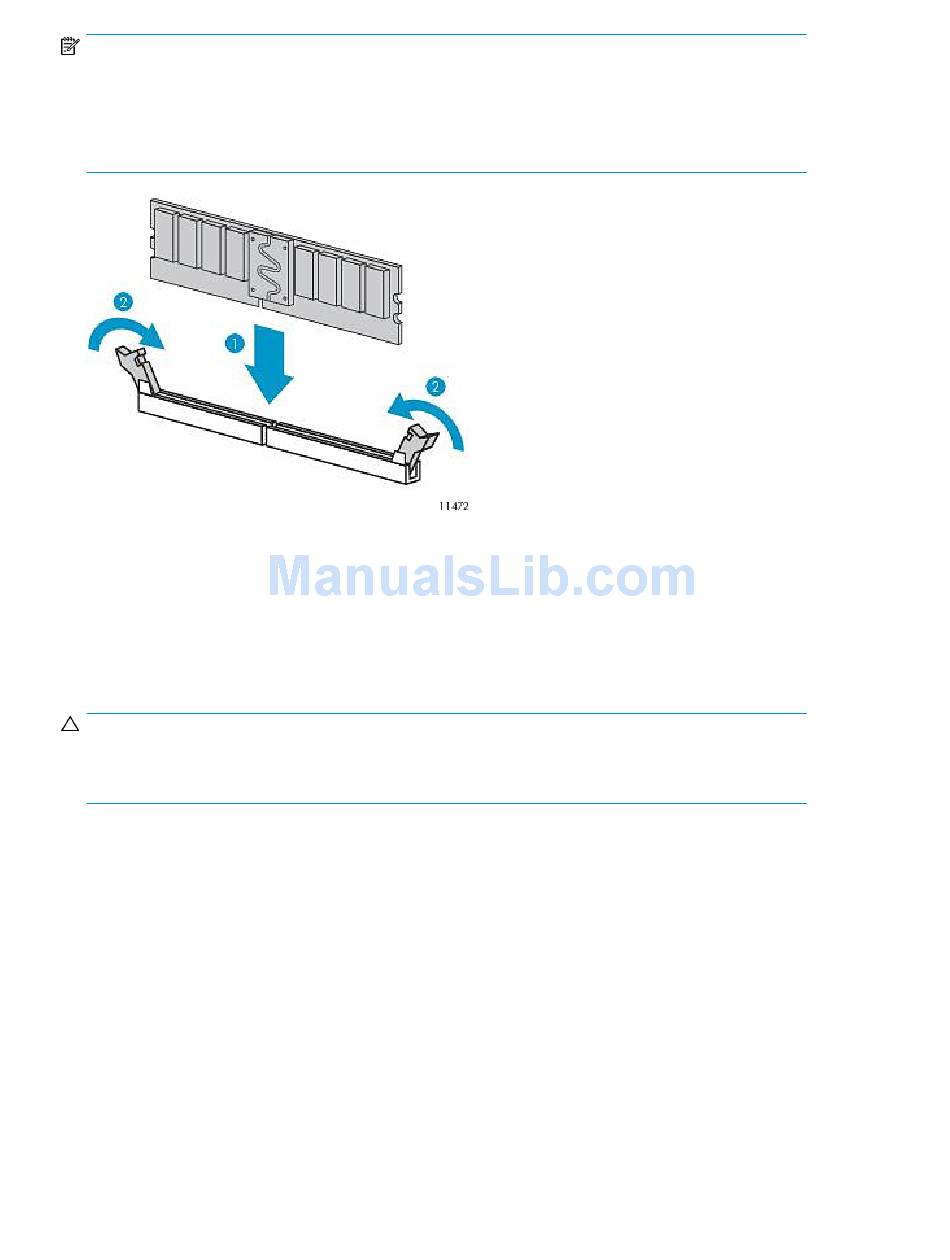

Figure 124 Installing the node FBDIMM
.

VLS6800 Node Component Replacement

SCSI Hard Drive

CAUTION:
To prevent improper cooling and thermal damage, do not operate the node unless all bays are
populated with either a component or a blank.
1. Press the ejector lever release button to unlock the ejector lever on the hard drive.
2. Pull the ejector lever open to release the drive.
286 Component Replacement
