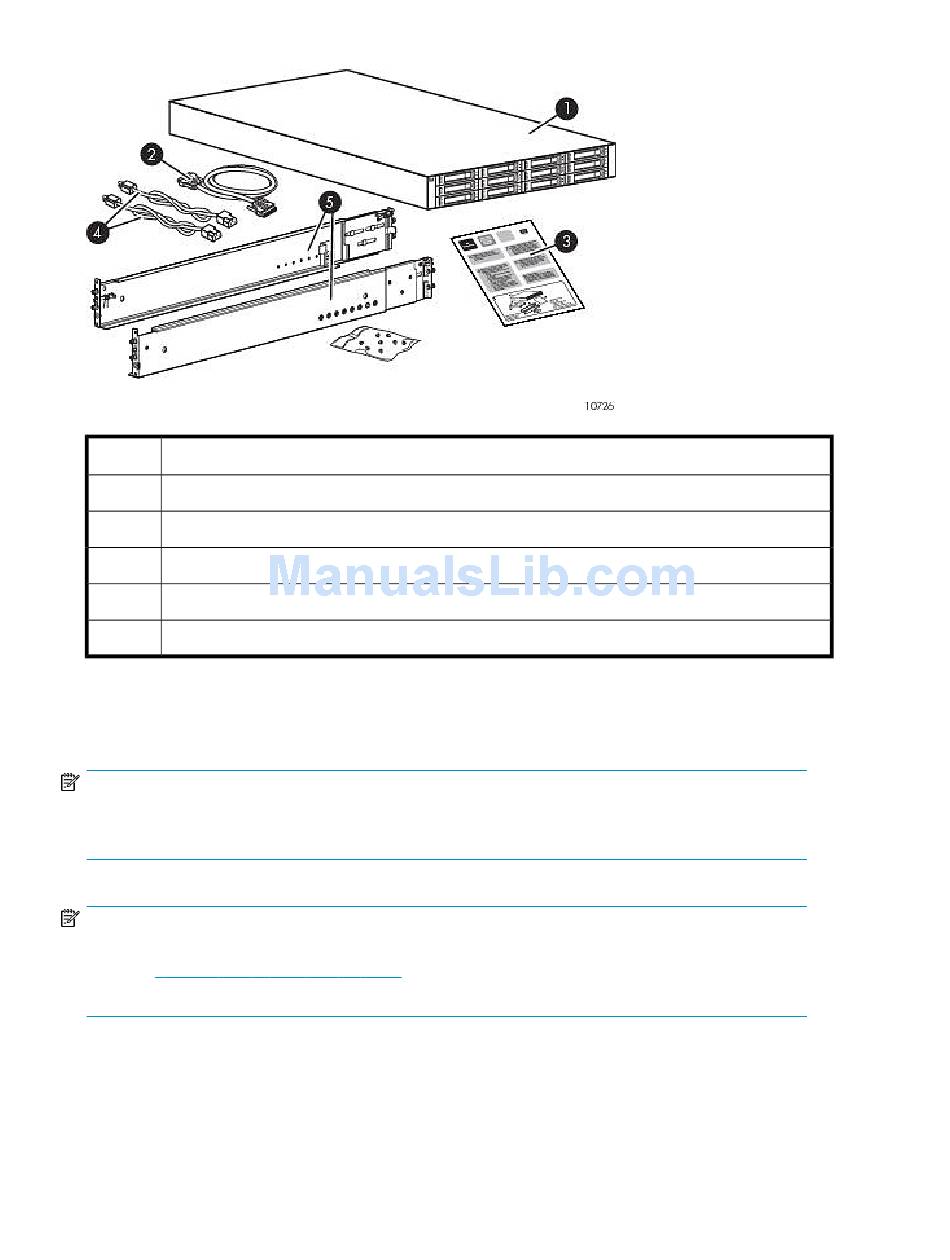

Disk Array Shipping Carton

Item Description
1 MSA20 disk array
2 SCSI cable
3 Printed VLS disk array installation poster
4 Disk array power cords (2)
5 2U rack mounting hardware kit and documentation

Installing the VLS6100 and VLS6500 Nodes into a Rack

NOTE:
Install components starting with the first available slot at bottom of the rack and working toward the
top of the rack. Starting at the bottom distributes the weight correctly in the cabinet.
NOTE:
If you are installing the node into a telco rack, order the appropriate option kit at the RackSolutions.com
web site: http://www.racksolutions.com/hp. Follow the instructions on the web site to install the rack
brackets.
To install a node into the rack involves three main tasks:
• Install Rails in the Rack
• Attach Rails to the Node
• Install Appliance in Rack
