5. Push levers on either side of the middle fan toward the front of the chassis (1). Rock the fan module
slightly and pull up and out of the node.

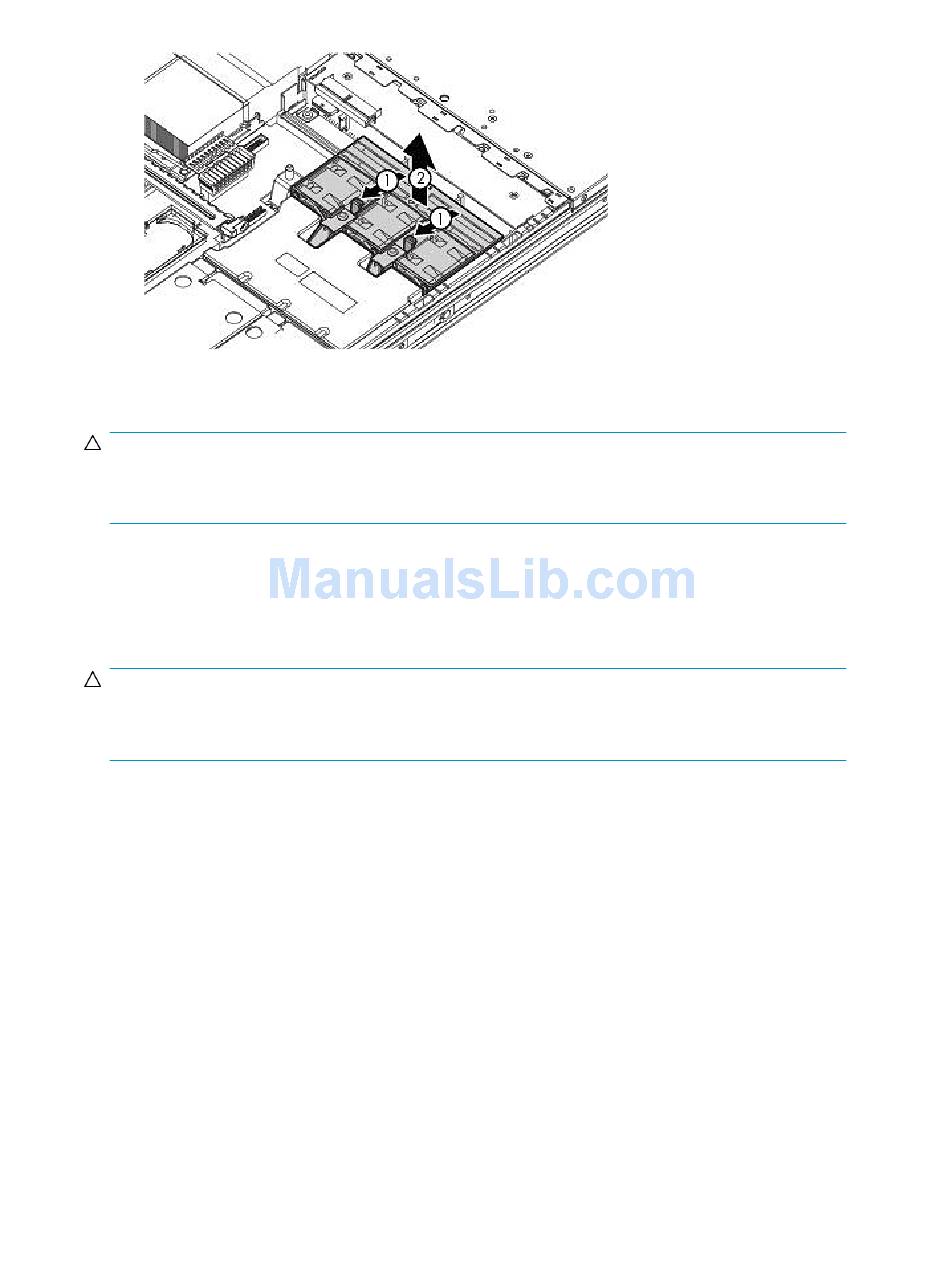

Figure 103 Removing the node power supply zone fan module
.
CAUTION:
When replacing the component, be sure the power converter module, which is located just in front
of the fan module, is properly seated in the node chassis.
To replace the component, reverse the removal procedure.

Processor zone Fan Module

CAUTION:
Do not operate the node for long periods without the access panel. Operating the node without the
access panel results in improper airflow and improper cooling that can lead to thermal damage.
1. Extend or remove the node from the rack. See
2. Remove the access panel. See
3. Loosen the single thumbscrew that secures the processor fan module to the node (1).
4. Push on the sheet metal tab near the thumbscrew to separate the fan tray connector from the
system board connector (2).
Extending the Node from the
Removing the VLS Node Access
Rack.
Panel.
HP StorageWorks 271
