Item Description
2 UID button/LED
NIC/iLO 2 activity LED
3
NIC/iLO 2 link LED
4
5 7 FC port LEDs

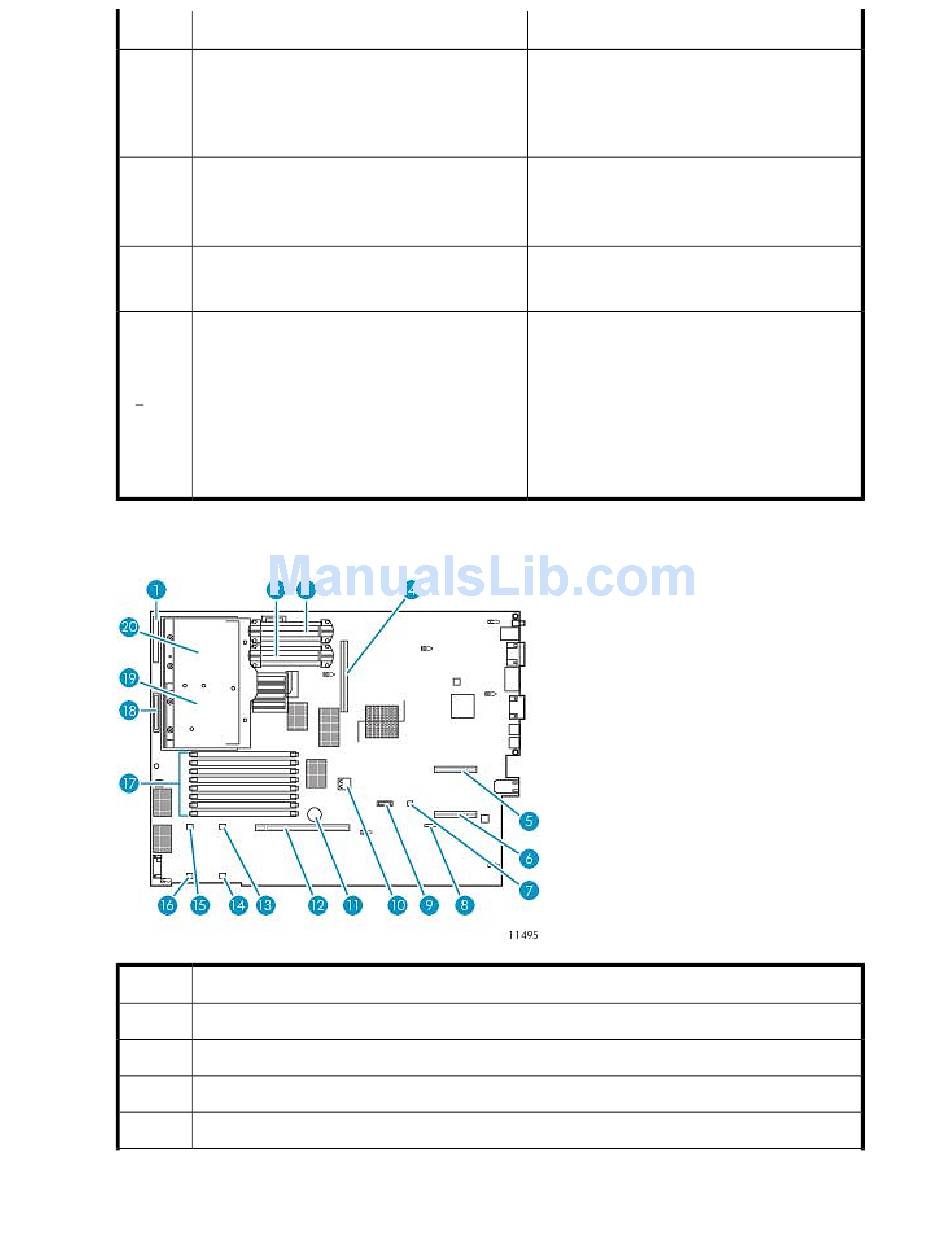

System Board Components

Item Description
1 Fan board connector
2 PPM 1
3 PPM 2
4 Power supply backplane connector
Status
Blue = Identification is activated.
Flashing blue = System is being managed
remotely.
Off = Identification is deactivated.
Green = Activity exists.
Flashing green = Activity exists.
Off = No activity exists.
Green = Link exists.
Off = No link exists.
Red, green, and amber on or flashing = Power
on.
LED that is on/flashing represents the link speed
(red = 1 Gbps, green = 2 Gbps, amber = 4
Gbps) = Online, I/O activity.
Red, green, and amber flashing alternately =
Firmware error.
Red, green, and amber off = Power off.
HP StorageWorks 237
