4. Confirm that the VLS components are all functioning normally and the VLS is cabled correctly by
observing the condition of their status LEDs. The LED status should match those shown in the
following table.
If an LED status does not match the status shown in the following tables, a component needs
attention.

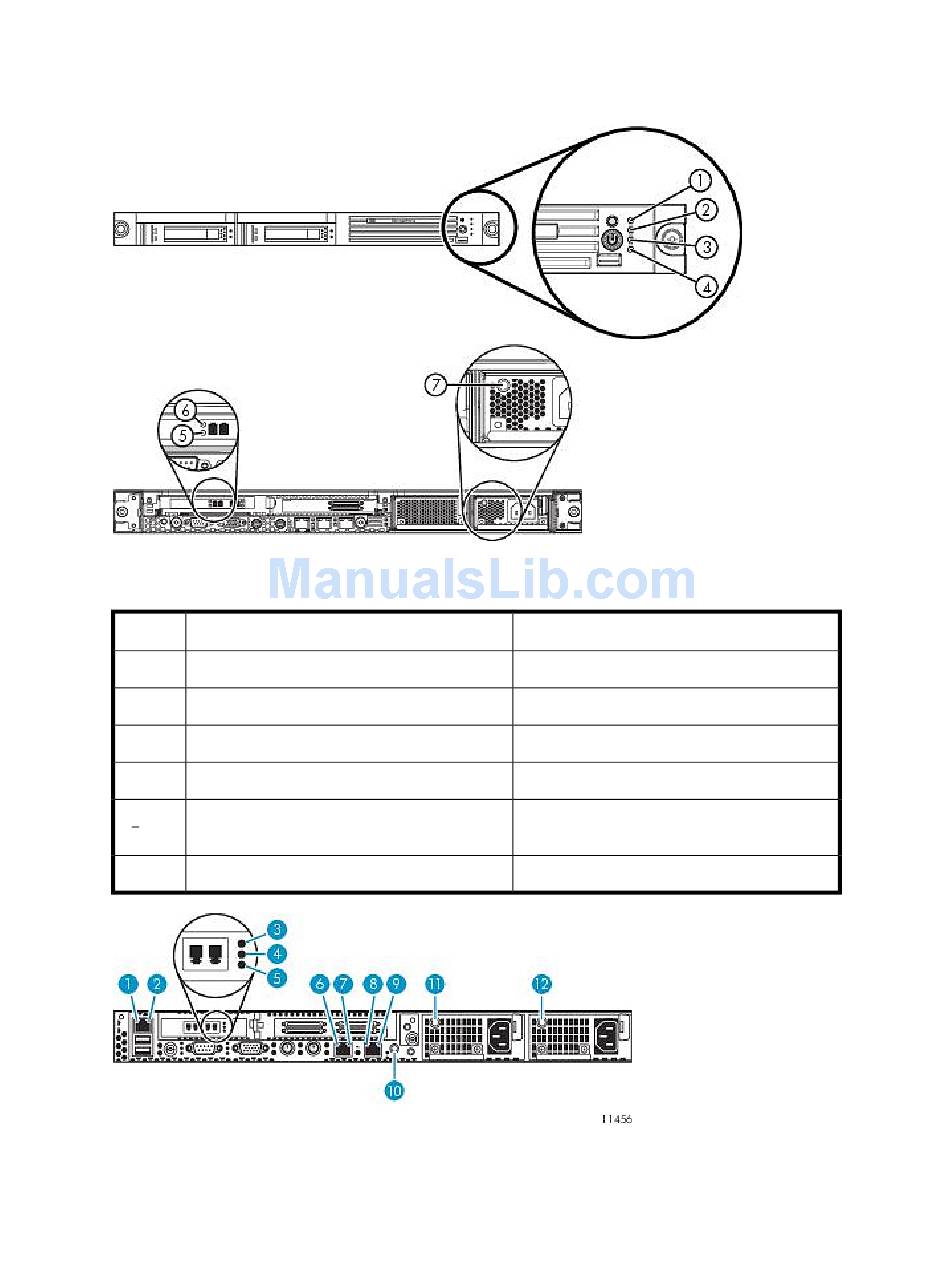

Figure 56 VLS6100 and VLS6500 node LED status during normal operation
.
Item Description
1 Internal health LED
2 External health LED (power supply)
3 NIC 1 link LED
4 NIC 2 link LED
5 6 FC port LEDs (VLS6100 only)
7 Power supply LEDs
Figure 57 VLS6200 node LED status during normal operation
126 Operation
Status
LED is green.
LED is green.
LED is green.
LED is off.
Green LED is illuminated. Amber LED is not il-
luminated.
LED is green.
