5. Remove the non-functioning fan.

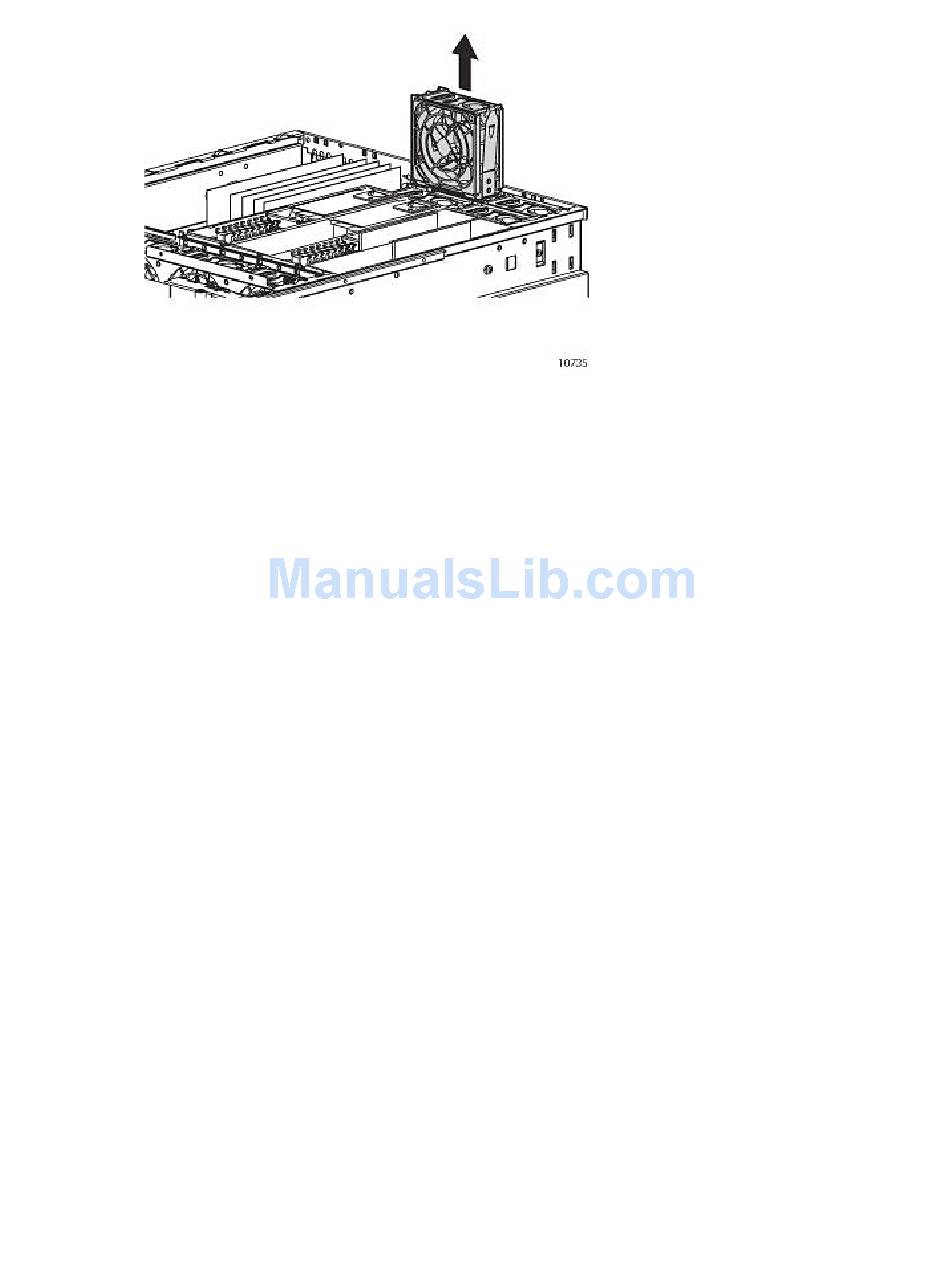

Figure 130 Removing a fan
.
To replace the component:
1. Install the replacement fan.
2. Be sure that the LED on the replacement fan is green.
3. Reinstall the node access panel. See
4. Press the rail-release levers at the front of both node rails and slide the node into the rack.
5. Secure the node in the rack by tightening the thumbscrews.

Processor Memory Board

1. Power off the node. See
2. Extend the node from the rack. See
3. Remove the access panel. See
Installing the VLS6800 Node Access
Powering Off the System.
Extending the VLS6800 Node from the
Removing the VLS6800 Node Access
Panel.
Rack.
Panel.
HP StorageWorks 291
