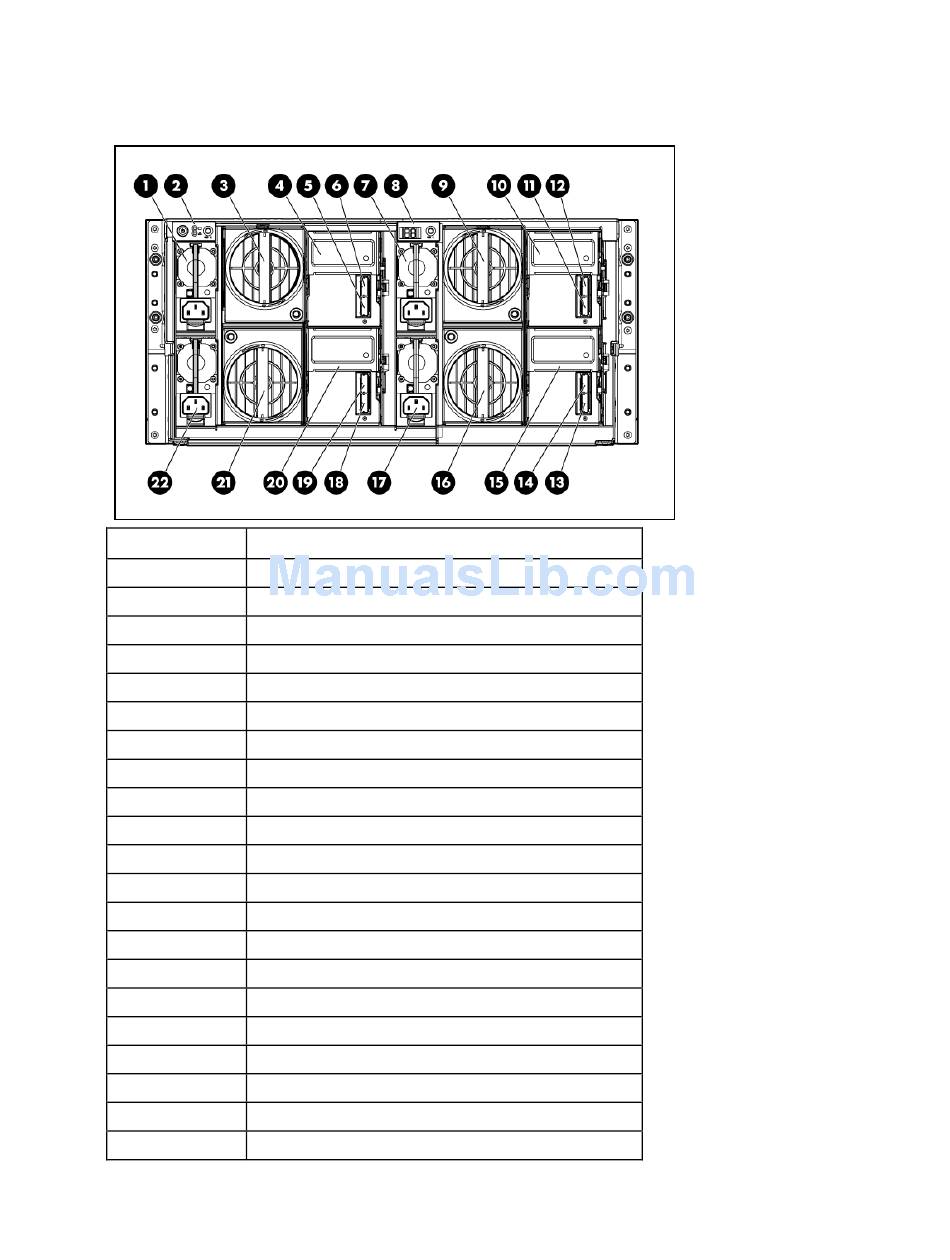

Rear panel components

The figure shows a maximum configuration. Your enclosure might appear differently, for example,
containing power supply or I/O module blanks, depending on the configuration that was ordered.
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Description
Power supply 1
Power On/UID 2 status panel
Fan module 1 (Drawer 2)
Primary I/O module (Drawer 2)
SAS port 1 connector
SAS port 2 connector
Power supply 3
UID 1 status panel
Fan module 1 (Drawer 1)
Primary I/O module (Drawer 1)
SAS port 1 connector
SAS port 2 connector
SAS port 1 connector
SAS port 2 connector
Secondary I/O module (Drawer 1)
Fan module 2 (Drawer 1)
Power supply 4
SAS port 1 connector
SAS port 2 connector
Secondary I/O module (Drawer 2)
Fan module 2 (Drawer 2)
Component identification 8
