Note:
Coin battery retainer types that are mounted in the RTC battery
motherboard location may be different.
Remove the battery from the battery holder.
3.

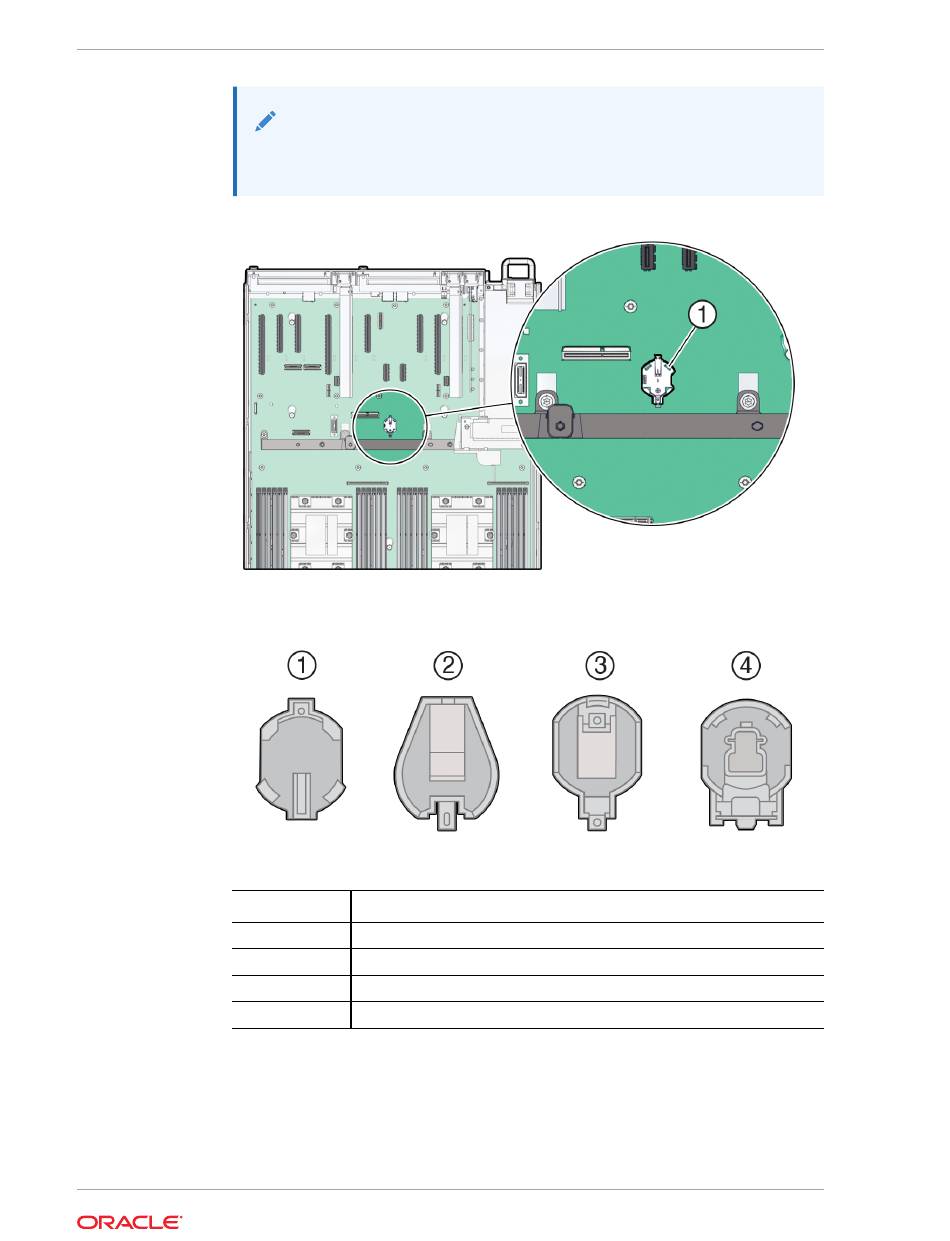

Review the following battery holder (Part number: 8210501) options.
Callout Description
1 796136-1 Top-Load Battery Connector (TE)
2 1093TR Top-Load Battery Connector
3 1070TR Top-Load Battery Connector
4 S8421 Top-Load Battery Connector
Do one of the following detailed instructions for the type of RTC battery retainer on
the server motherboard.
• [1] Remove the battery from the TE Top-Load Battery Connector as follows.
Each connector consists of a housing with a positive contact and a negative
contact. The floor of the housing is embossed with a `+' to designate the
