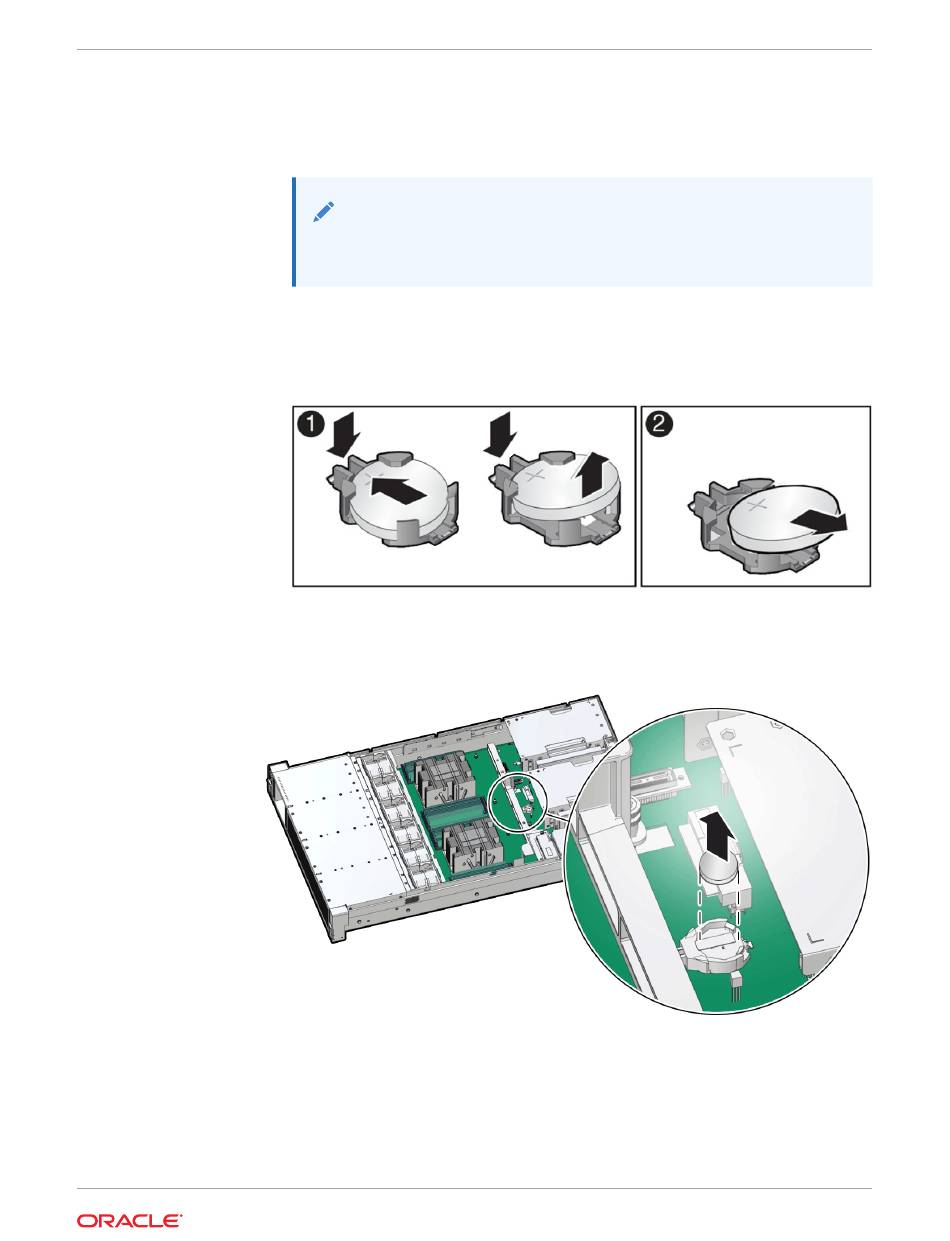

positive contact. The connector features four lips for positive retention of the battery.
Grasp connector. Support the connector by grasping the "positive" end of the
a.
connector.
Note:
CAUTION! The connector must be supported, otherwise damage to the
soldered contacts could occur.
Slide battery under lips at positive end of connector. While supporting the
b.
connector, simultaneously push the battery toward the positive end of the
connector, and slightly move the lips at the negative end of the connector away
from the battery. Hold in this position, and lift the battery.
Pull the battery from the connector.
c.
• [2] Remove the battery from the 1093TR battery connector as follows.
Push the coin battery towards the negative spring and then lift up the coin battery to
dislodge it from its holder.
• [3] [4] Remove the battery from other Top-Load Battery Connectors as follows.
To dislodge the battery from the retainer, place your finger under the side of the
a.
battery nearest the rear of the server [1].
Gently lift the battery up and out of the retainer [2].
b.
Chapter 10
Remove the Battery
10-3
