Remove the front LED indicator module [2].
5.
a.
b.

Install the Front LED Indicator Module

Install the front LED indicator module.
1.
a.
b.
Remove the two No. 2 Phillips screws that secure the LED indicator module to the
server front panel.
Remove the LED indicator module and cable from the server front panel.
Remove the LED indicator module cable by carefully pulling the cable through the
left-side cable trough.

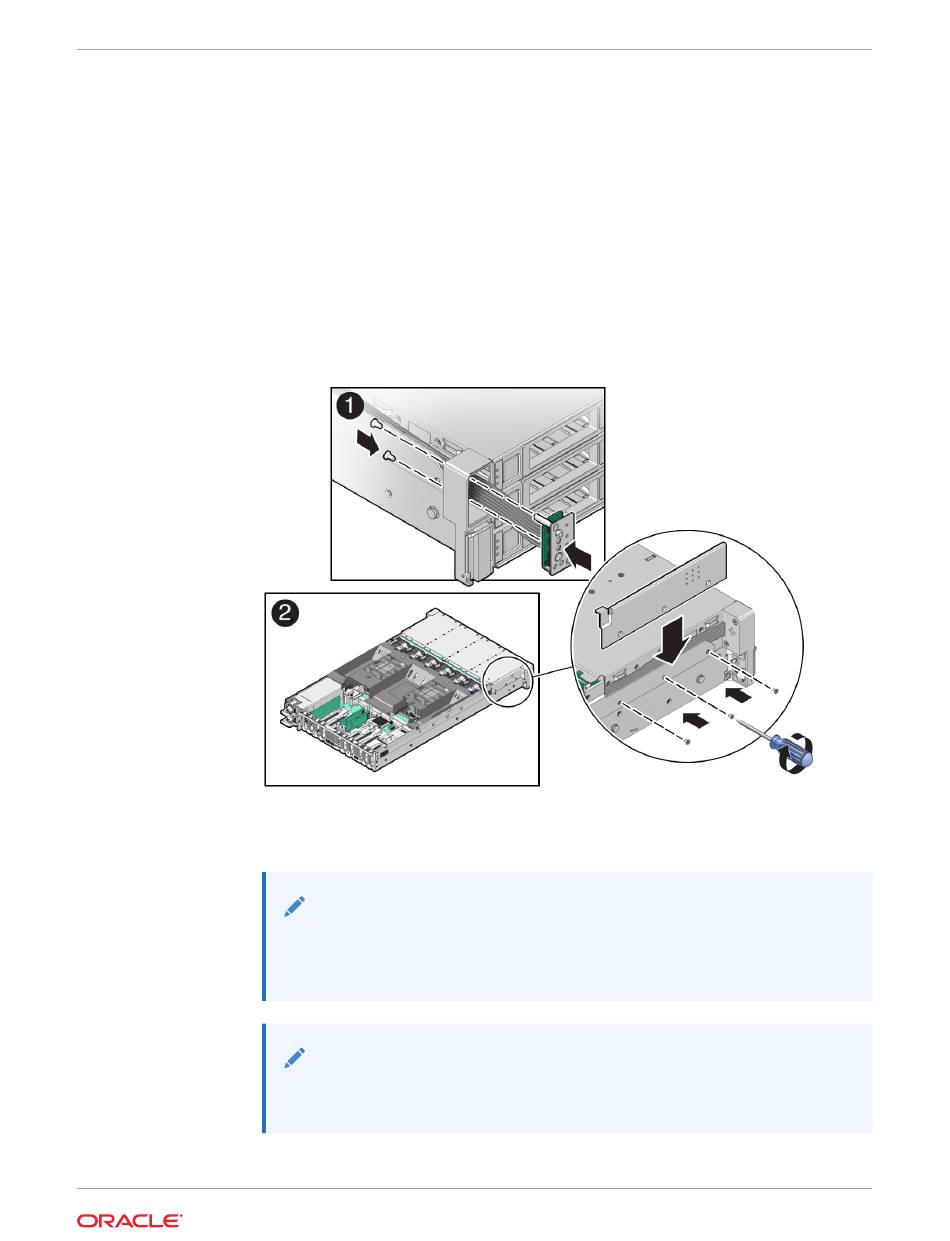

Push the LED indicator module and cable through the LED housing on the server
front panel [1].
Install the LED indicator module cable by carefully pulling the cable through the left-
side cable trough.
Note:
To ease installation of the LED indicator module cable, you might need to
lift the disk backplane auxiliary signal cable and SAS cable (if present) from
the left-side cable trough.
Note:
Cable part number UPDATE PART NUMBER 7315469 is required for the
LED indicator module.
