Note:
Before you install the slide-rails, be sure to install the server right-angle AC power
cables (part number 7079727 - Pwrcord, Jmpr, Bulk, SR2, 2m, C14RA, 10A, C13).
In the 1000 mm rack, the standard rail kit slide-rails obstruct access to the front of
the 15kVA, 22kVA, and 24kVA Power Distribution Unit (PDU) electrical sockets. If
you use the standard AC power cables, first plug them in, and then install the slide-
rails into the rack. After you install the slide-rails, you cannot disconnect or remove
the standard AC power cables from the PDU but you can remove them from the
system.

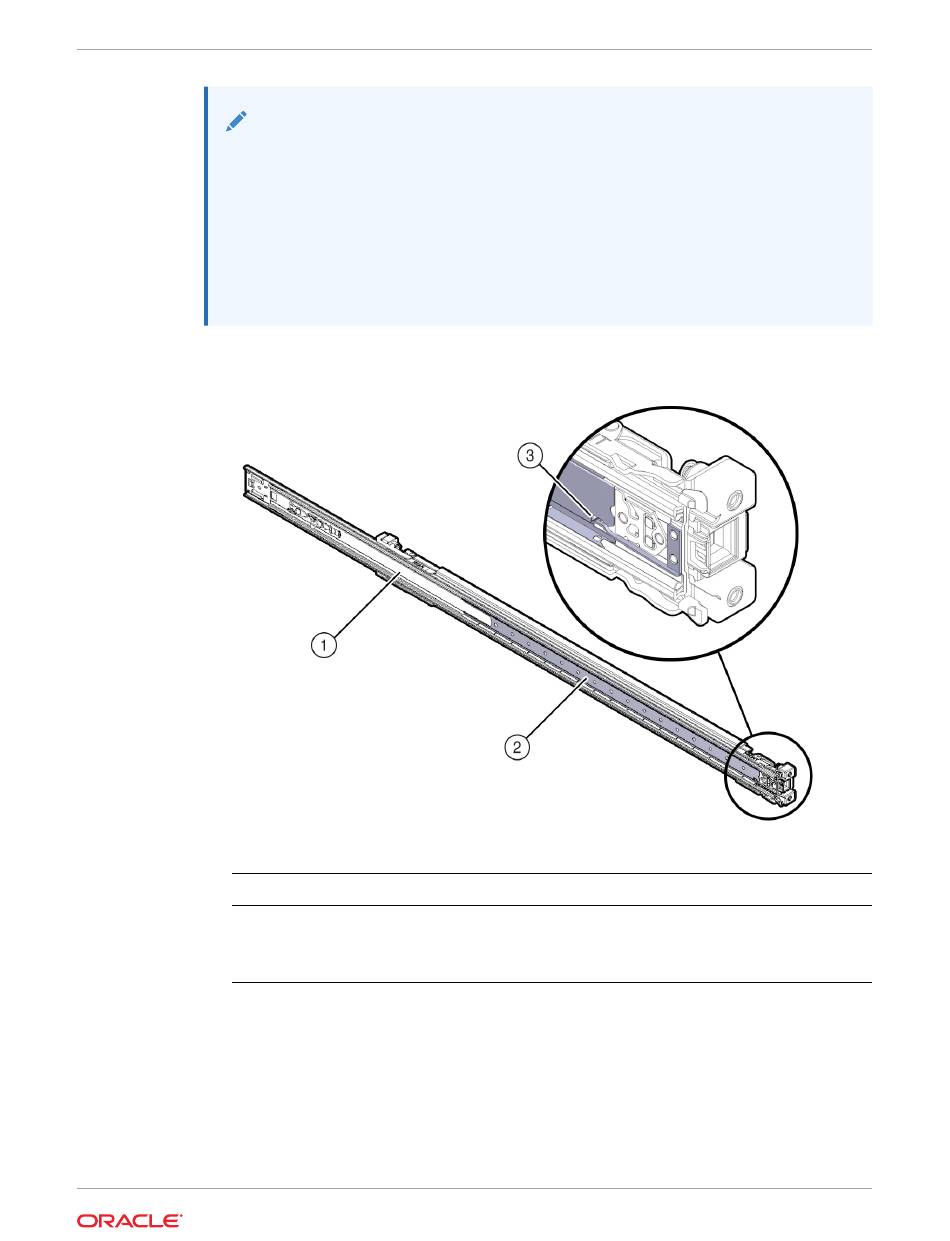

Orient the slide-rail assembly so that the ball-bearing track is forward and locked in place.
1.
Call Out Description
1 Slide-rail
2 Ball-bearing track
3 Ball-bearing locking mechanism
Starting with either the left or right side of the rack, align the back of the slide-rail
2.
assembly against the inside of the back rack rail, and push until the assembly locks into
place with an audible click.
