Insert and tighten the two No. 2 Phillips screws to secure the LED indicator
c.
module to the server front panel [1].
Install the FIM cable cover to the chassis by inserting it into the FIM cable
d.
cover slot [2].
Install the three No. 2 Phillips screws to secure the FIM cable cover to the
e.
chassis [2].

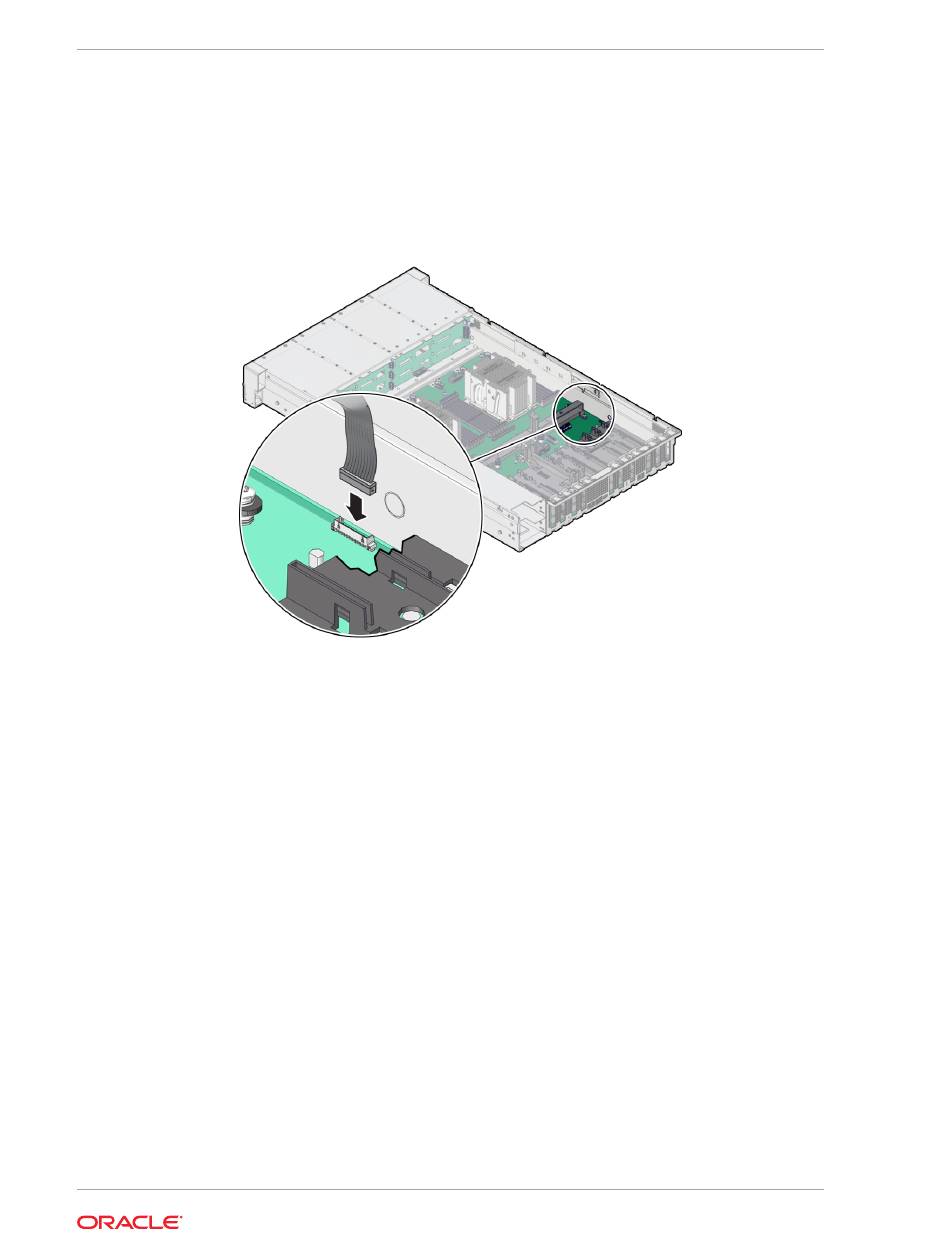

Reconnect the LED indicator module cable to the motherboard.
2.
Return the server to operation.
3.
Install the server top cover.
a.
See Install the Server Top
Return the server to the normal rack position.
b.
See Return the Server to the Normal Rack
Reconnect the power cords to the power supplies, and power on the server.
c.
See Reconnect Power and Data Cables
Verify that the power supply AC OK LED is lit.
d.
Install the Front LED Indicator Module
Cover.
Position.
and Power On the
Chapter 15
Server.
