Oracle Exadata X10M Service Manual page 174

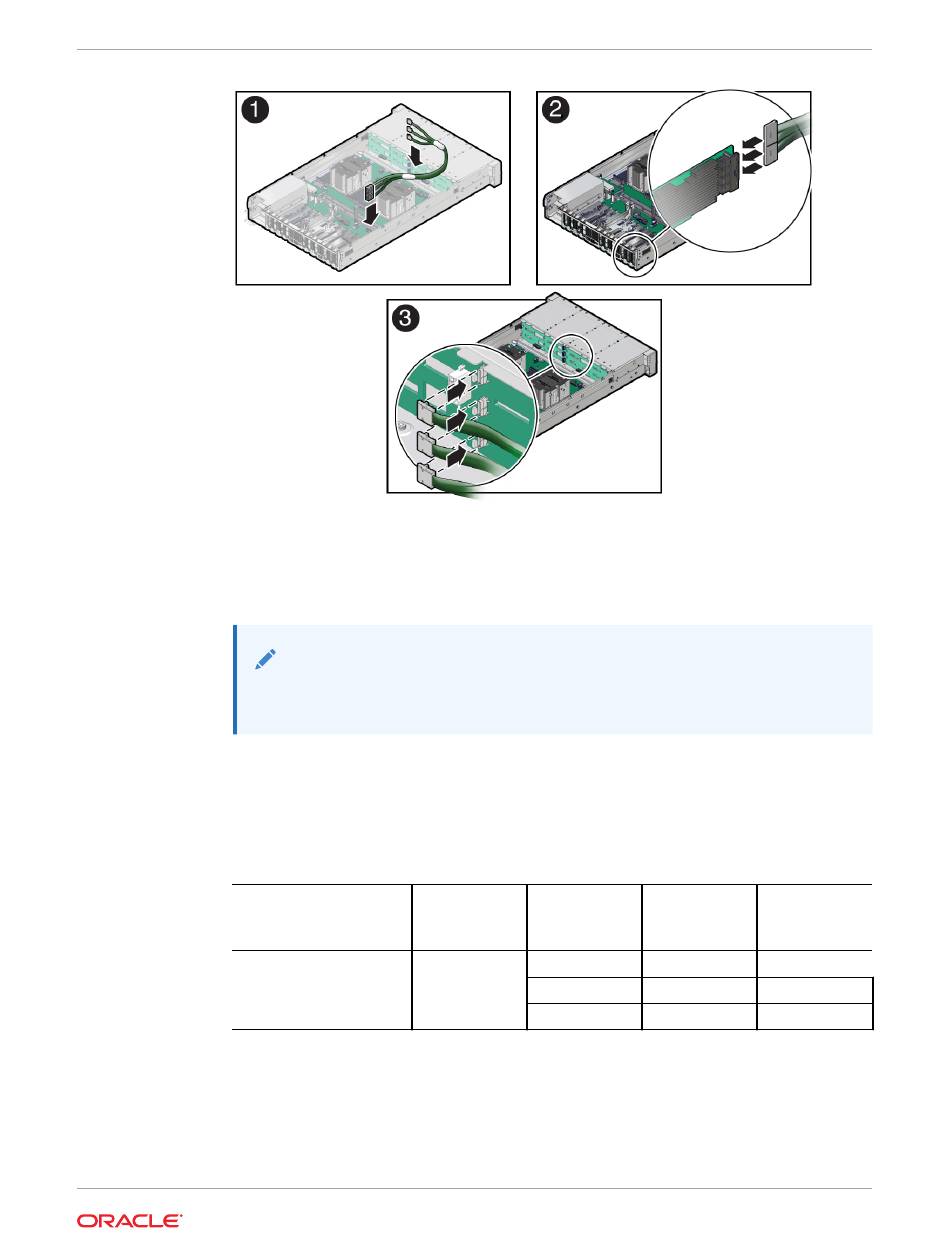

Reconnect the SAS cables to the Broadcom 9500-16i, 12GB SAS PCIe, 16 Port, Internal
2.
card in PCIe slot 9 [2].
Plug each cable into its SAS connector until you hear an audible click. To ensure proper
SAS cable connections, see the SAS cable connections table in
Note:
SAS cable assembly, part number 8211223 [F] is required to connect the HBA
card to the disk backplane.
Reconnect the SAS cables to the disk backplane [3].
3.
Plug each cable into its SAS connector until you hear an audible click.
When attaching SAS cables, ensure that you match the numbers on the SAS cables with
the SAS connectors on the disk backplane and on the HBA card. Use the following table
to ensure proper SAS connections between the disk backplane and the HBA card.
HBA Card
Broadcom 9500-16i,
12GB SAS PCIe, 16 Port,
Internal
Return the server to operation.
4.
Install the fan tray.
a.
See Install the Fan
Install the fan modules.
b.
PCIe Slot HBA
Location Connector
9 C0 - 1
C0 - 2
C1 - 3
Tray.
Chapter 16
Install SAS Storage Drive Cables
Step 3.
Disk SAS Storage
Backplane Drives
Connector
1 0, 1, 2, 3
2 4, 5, 6, 7
3 8, 9, 10, 11
16-3
