Oracle Exadata X10M Service Manual page 239

Call Out Description
1 Connector C release tab (labeled PUSH)

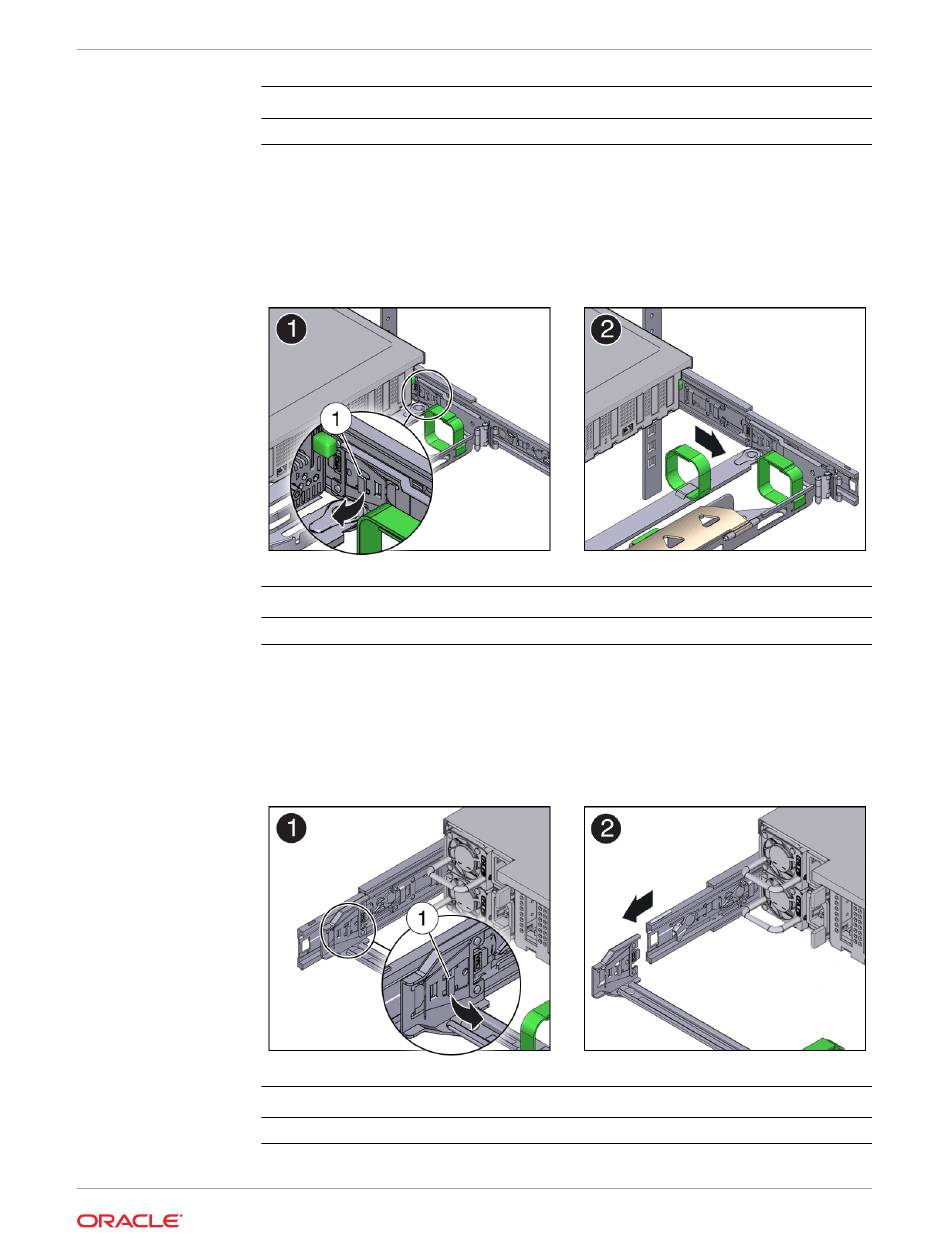

To disconnect connector B:
6.
Place your right arm under the CMA to support it and grasp the back end of
a.
connector B with your right hand.
Use your left thumb to pull the connector B release lever to the left, away from the
b.
right slide-rail (callout 1), and use your right hand to pull the connector out of the
slide-rail [1 and 2].
Call Out Description
1 Connector B release lever
To disconnect connector A:
7.
Place your left arm under the CMA to support it and grasp the back end of connector
a.
A with your left hand.
Use your right thumb to pull the connector A release lever to the right, away from the
b.
left slide-rail (callout 1), and use your left hand to pull the connector out of the slide-
rail [1 and 2].
Call Out Description
1 Connector A release lever
