Rackmounting the Server

To rackmount the server, secure the rack to the floor, stabilize the rack, and install the
mounting brackets and slide rails. Then, install the server into the rack.
Note:
Rack Mount Instructions
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack environment may be greater than
room ambient. Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that
the amount of air flow required for safe operation of the equipment is not
compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that
a hazardous condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might
have on overcurrent protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be
maintained. Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g. use of power strips).
Equipment is intended for installation in Restricted Access Area

Rackmount Kit Contents

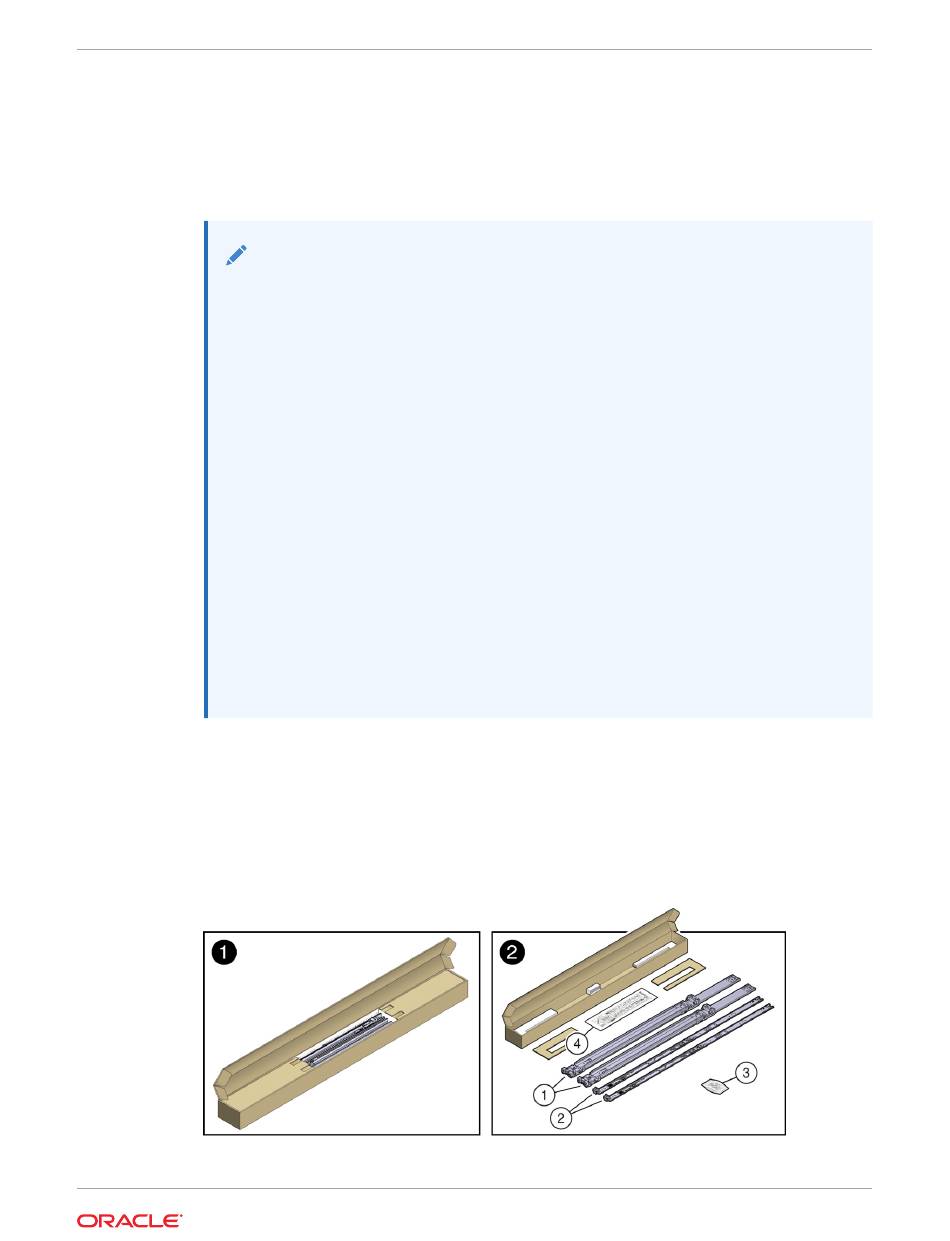

The following figure shows the Rackmount Kit contents. For additional instructions on how to
install your server in a four-post rack using the slide-rail and cable management arm options,
refer to the Rackmounting Template.
