USB Ports

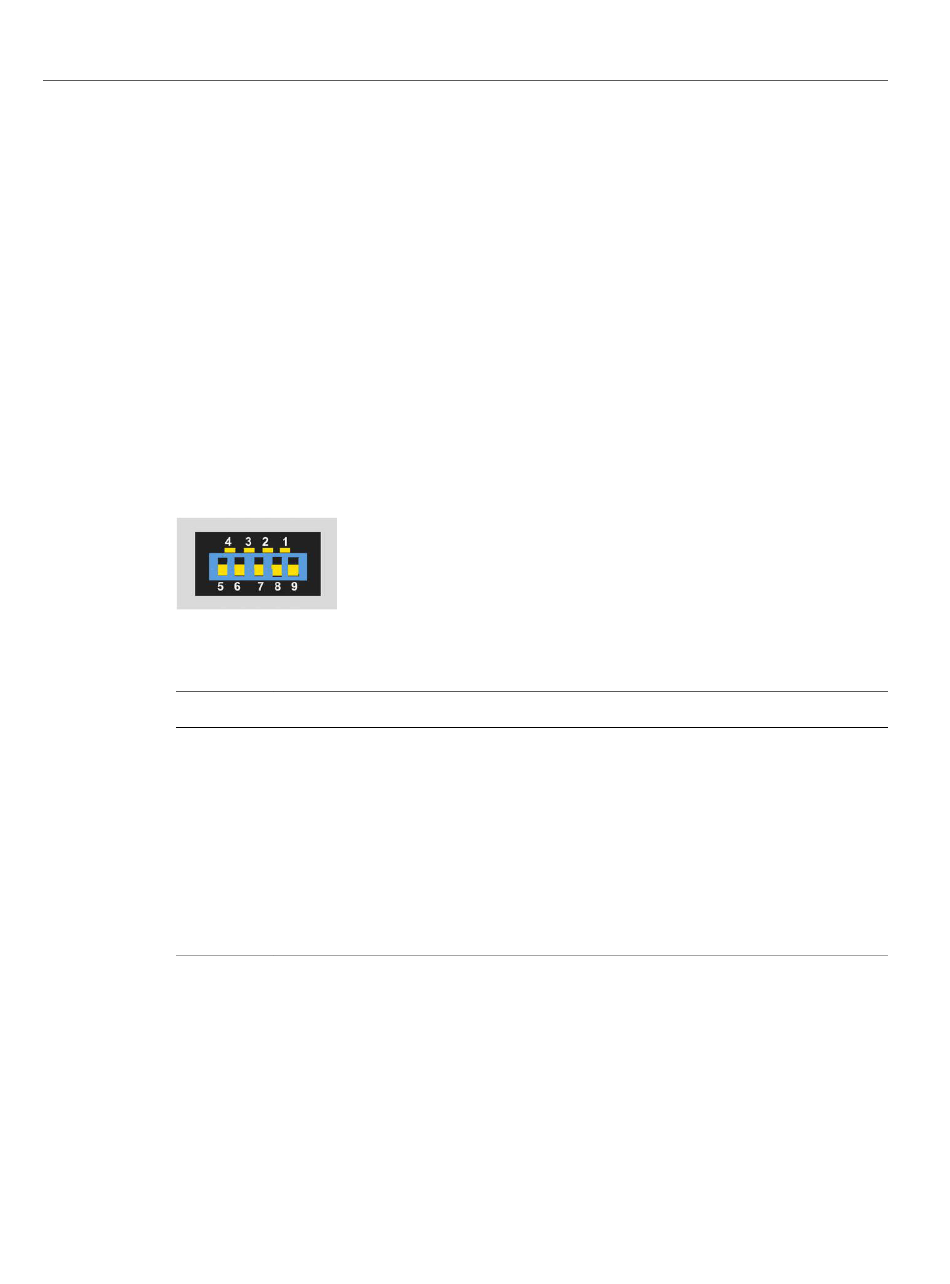

The server has two USB ports for attaching supported USB 3.0–compliant devices. One USB
port is on the back panel and one USB port is located on the motherboard. The following figure
and table describe the USB port pin signals.
TABLE 9
Pin
1
2
3
4
5
6
7
8
9
Related Information
"Back Panel Components and Cable Connections" on page 18
■
"Disconnect Cables From the Server" on page 61
■
"Reconnect Power and Data Cables" on page 222
■
USB Port Signals
Signal Description
+5 V
USB 2.0 DAT-
USB 2.0 DAT+
Ground
USB 3.0 RX-
USB 3.0 RX+
Ground
USB 3.0 TX-
USB 3.0 TX+
USB Ports
Identifying the Server Ports 229
