Install the Temperature Sensor
Install the Temperature Sensor

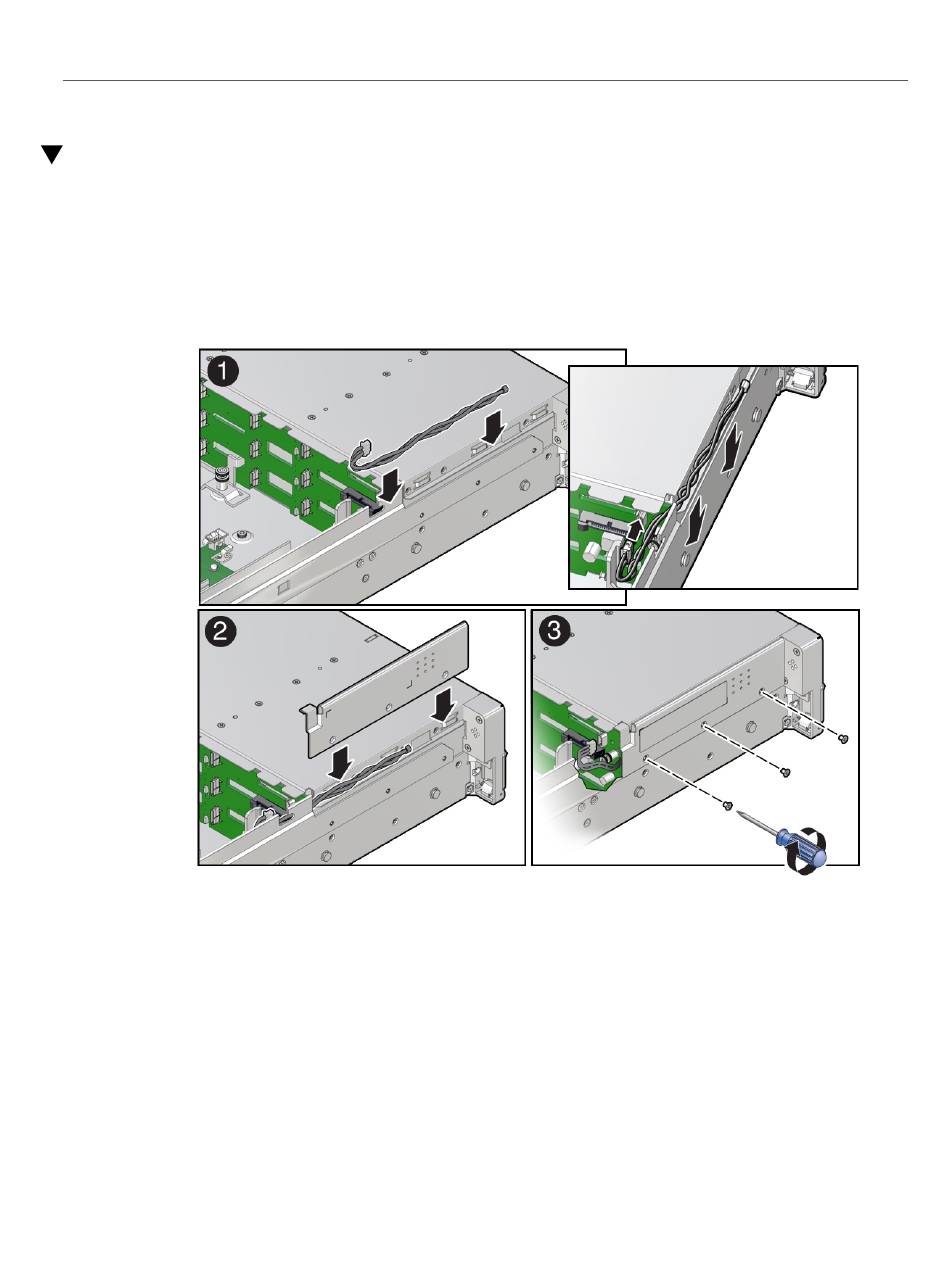

Install the temperature sensor by carefully inserting the sensor-end of the cable
1.
through the rear opening of the cable trough. Then pull the cable through the
opening and install it into the cable trough along the left side of the chassis [1].
2.
Install the FIM cable and Temp Sensor Access cover to the chassis by inserting
it into the FIM cable and Temp Sensor Access cover slot [2].
3.
Install the three No. 2 Phillips screws to secure the FIM cable and Temp Sensor
Access cover to the chassis [3].
178
Oracle Server X8-2L Service Manual • January 2021
