Remove the Server Top Cover
2.

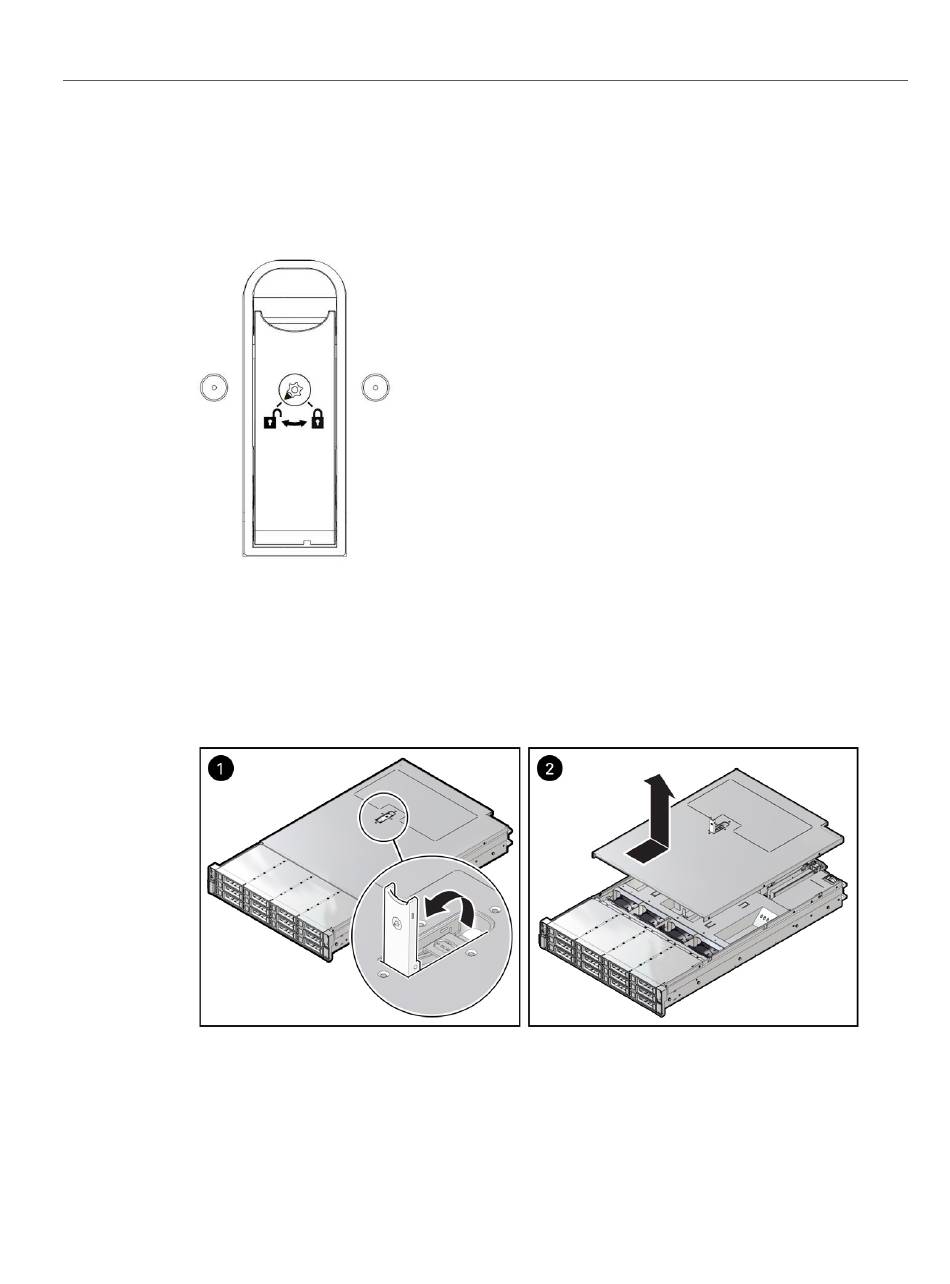

If the release button latch is in the locked position, use a Torx T15 screwdriver to
turn the release button latch clockwise to the unlocked position.
3.
Unlatch the top cover [1].
Lift up on the release button on top of the server cover. Lifting the release button causes the
server cover to slide toward the rear of the chassis for easy removal.
Lift up and remove the top cover [2].
4.
66
Oracle Server X8-2L Service Manual • January 2021
