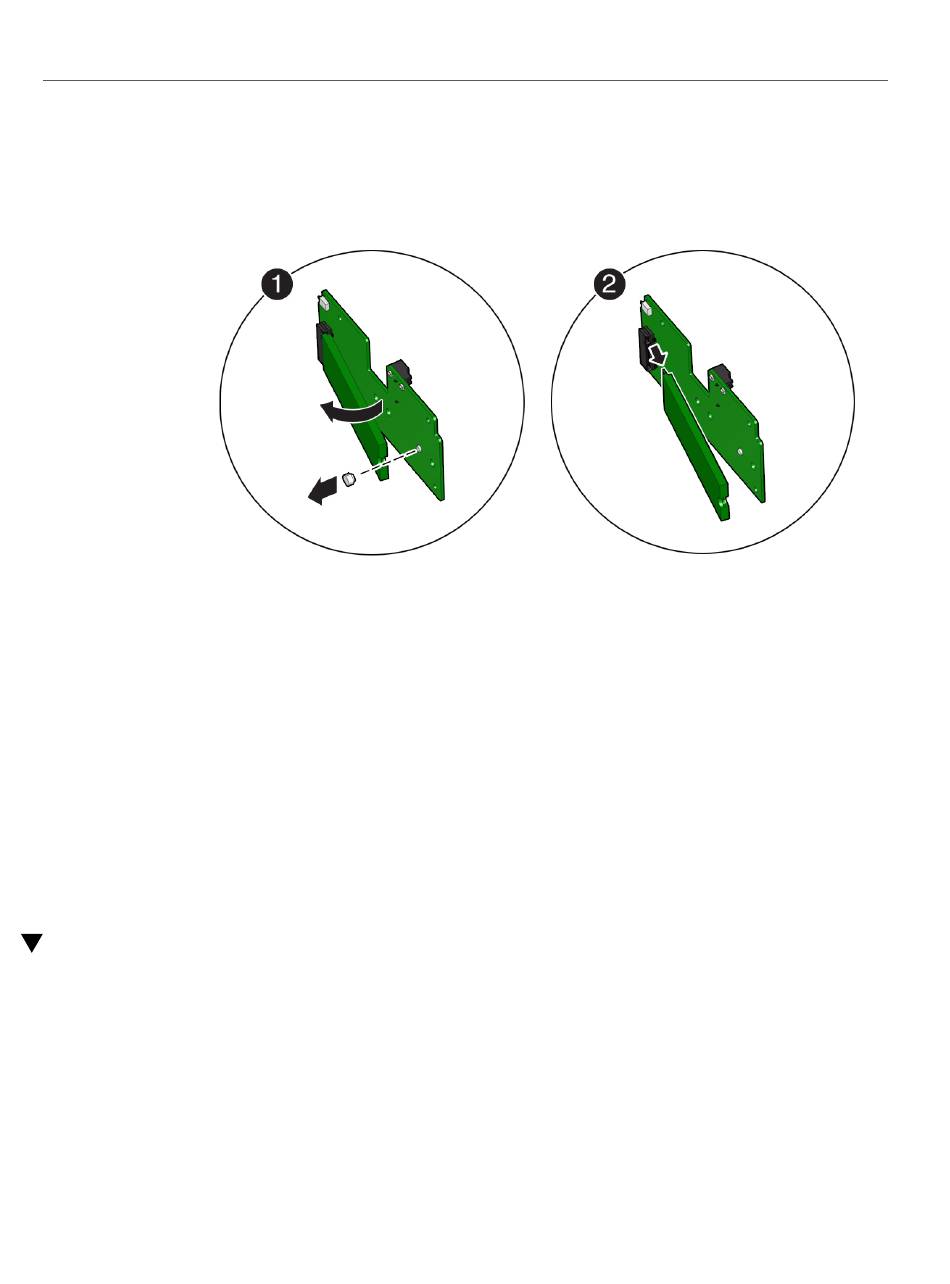

a. Using your fingers, push the plastic retainer clip through the flash riser
board to release the M.2 flash SSD from the riser board [1].
b. Remove the plastic retainer clip from the M.2 flash SSD [1].
Lift up on the end of the M.2 flash SSD where the plastic retainer clip was
c.
removed by one-half to one inch [2].
d. Gently slide the M.2 flash SSD card back and out of the connector to
disengage the SSD contacts from the riser board socket [2].
Place the M.2 flash SSD on an antistatic mat.
Related Information
"Install an M.2 Flash SSD" on page 105
■

Install an M.2 Flash SSD

In the standard Oracle Server X8-2L configuration, the flash riser board contains an M.2 flash
SSD in socket SSD0.
1. Unpack the replacement M.2 flash SSD and place it on an antistatic mat.
Install an M.2 Flash SSD
Servicing the Internal M.2 Flash SSDs (CRU) 105
