Install SAS Storage Drive Cables

Related Information
"Remove the Internal HBA Card and HBA Super Capacitor" on page 182
■
"Install SAS Storage Drive Cables" on page 192
■
Install SAS Storage Drive Cables

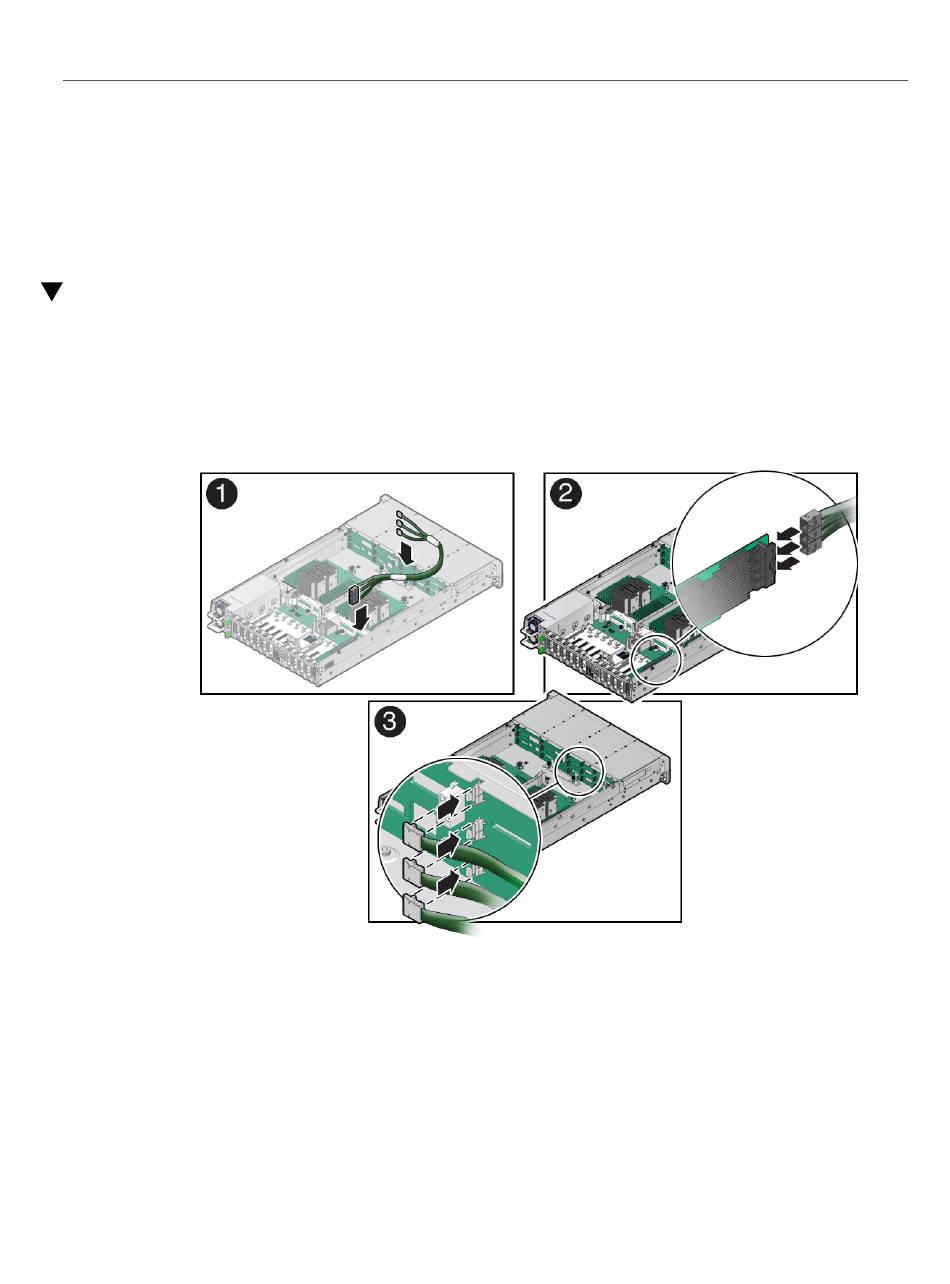

Install the SAS cables between the disk backplane and the rear PCIe slots [1].
1.
Route the SAS cable bundle through the cable trough along the left side of the chassis.
2. Reconnect the SAS cables to the Oracle Storage 12Gb SAS PCIe RAID HBA,
Internal card in PCIe slot 11 [2].
Plug each cable into its SAS connector until you hear an audible click. To ensure proper SAS
cable connections, see the SAS cable connections table in
HBA Card and HBA Super Capacitor" on page
192 Oracle Server X8-2L Service Manual • January 2021
Step 3. See also
185.
"Install the Internal
